Beam Patterns, Sizes, Mounting Spots and Wiring: What to Check Before You Buy
Picking an LED light bar for truck use comes down to four choices: the beam pattern, the size, where it mounts and how it's wired. Get those right and you'll light up the trail, the job site or the campsite without blinding yourself with glare off the hood.
Why Choose an LED Light Bar for Trucks?
Factory headlights are built for paved roads and other traffic. Once you leave the pavement, they often aren't enough.
A good light bar can help with:
- Seeing farther down dark trails and back roads when you're off-road.
- Lighting a wide area around a work site, campsite or boat ramp.
- Low power draw compared with older halogen work lights.
- Durability, with no filament to break on rough roads.
Most LED light bar for truck kits are sold as off-road lights, which limits where and when you can use them.
Spot vs Flood Light Bar: Choosing a Beam Pattern
On an off-road light bar, the beam pattern decides where the light goes. It matters more than raw brightness.
| Beam pattern | What it does | Best for |
|---|---|---|
| Spot | Narrow, focused beam that reaches far ahead | Higher-speed trail driving, open desert, long straight roads |
| Flood | Wide, even spread over a short distance | Work sites, campsites, slow technical trails |
| Combo | Spot optics in the center, flood optics on the ends | Mixed use where you want both reach and spread |
| Driving / wide | A shaped beam between spot and flood | Gravel roads and forest roads at moderate speed |
If you're not sure, a combo beam is the safest first choice for an LED light bar for truck owners who do a little of everything.
What Size LED Light Bar Do You Need for Your Truck?
An LED light bar for trucks can be anything from a compact bar under 10 inches to a 50-inch bar that spans a full-size roof. Our LED light bar collection runs from 7-inch bars up to 50-inch bars.
A rough guide to sizing:
- Small (about 6 to 12 inches): behind a grille, on a bumper or as a work light on the bed.
- Mid (about 20 to 32 inches): lower bumper, bull bar or a mid-size truck's roof.
- Large (40 inches and up): full-size truck roofs and cab racks.
Measure the mounting spot, brackets included. A bar that looks right online can block grille airflow or hit a rack crossbar.
Single Row vs Dual Row Light Bars
Single row bars are slim and low-profile. They tuck into tighter spaces, like behind a grille or under a bumper lip, and tend to look cleaner on a daily driver.
Dual row bars stack two rows of LEDs in a taller housing. They usually put out more light but are bulkier and draw more power.
When choosing an LED light bar for truck use, pick the slimmest bar that lights what you need. You can add LED pods later.
Mounting an LED Light Bar for Trucks: Roof, Bumper or Bed
Every light bar mounting spot trades off reach, glare and noise.

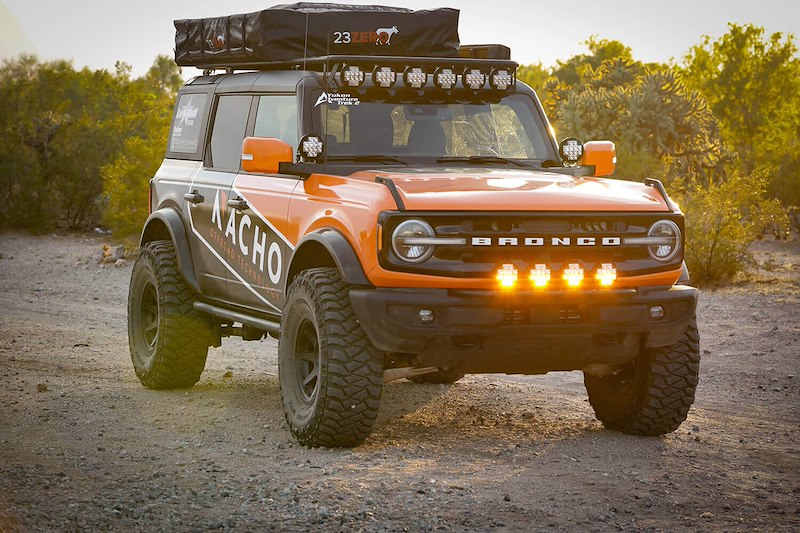

Roof and Cab Rack
A roof light bar for truck setups throws light the farthest because it sits high. The downsides are hood glare and more wind noise. If you already run a rack, read our guide to truck bed racks vs roof racks before you add lights to it.
Bumper, Bull Bar and Grille
A bumper light bar sits low, so it lights the ground right in front of you with very little hood glare. It's also easy to aim and wire. A bull bar grille gives you a solid place to mount a bar or a pair of pods.
Bed, Rear Bumper and A-Pillar
A small flood bar on a bed rack or rear bumper works as a work light or backup light. Ditch lights (small pods on the A-pillars) light up the sides of the trail on tight turns.
Use brackets made for the bar and the mounting surface. Plastic bumper covers often can't hold a bar steady on rough roads.
Wiring, Switches and Power Draw
Most LED light bar for truck installs use a wiring harness with a relay, fuse and switch. A relay lets a small switch circuit control the bar's heavier power circuit, and the inline fuse protects the wiring.
A few tips:
- Use the harness that came with the bar, or one rated for its power draw.
- Keep wires away from the exhaust, sharp edges and moving parts.
- Don't tie the bar into your high beams unless the bar maker's instructions and your local rules allow it.
If you're not comfortable with 12-volt wiring, have a professional install it.
Truck Light Bar Housing, Lens and Weather Rating
An LED light bar for trucks lives with mud, rain, car washes and vibration. Look for:
- Die-cast aluminum housing, which is strong and helps shed heat.
- Polycarbonate lens, which resists impacts from gravel and branches.
- An IP rating such as IP67 or IP68. The first digit is dust protection and the second is water protection, and higher means more protection.
- Sealed, strain-relieved wiring where the cable leaves the housing.
Smaller LED pods, like flush-mount cube lights, use the same build and work well for ditch lights or bumper cutouts. Browse our auxiliary lights for pods and driving lights.
Are LED Light Bars Street Legal?
Federal standard FMVSS No. 108 covers the lighting that vehicles are required to have. Extra lights like a light bar are mostly regulated by state law, and the rules vary.
In general, many states limit when auxiliary off-road lights can be on while driving on public roads. Some also have rules about light color, covers and how many forward lights you can run. Before you run an LED light bar for truck lighting on the road, check your state's vehicle code, and switch it off around other traffic.
7 Things to Check Before You Buy an LED Light Bar for Truck Use
- Main use: trail driving, work lighting, camping or a mix.
- Beam pattern: spot, flood, combo or driving.
- Length: measured at the exact mounting spot, brackets included.
- Single or dual row: slim profile or more output.
- Mounting hardware: brackets made for your bumper, rack or roof.
- Wiring: a harness with a relay, fuse and switch.
- Build: aluminum housing, polycarbonate lens and an IP rating.
LED Light Bar for Truck FAQ
Are LED light bars legal on trucks?
LED light bars are usually sold for off-road use, and rules for running them on public roads vary by state. Many states limit when auxiliary lights can be on while driving, especially around other traffic. Check your state's vehicle code, and keep the bar switched off on the street unless your local rules clearly allow it.
What size LED light bar do I need for my truck?
It depends on where it mounts. Small bars of about 6 to 12 inches fit grilles and bumpers. Bars of about 20 to 32 inches suit lower bumpers, bull bars and mid-size roofs. Bars of 40 inches and up suit full-size roofs. Measure the mounting spot with the brackets before you buy.
Is a spot or flood light bar better?
Neither is better for every truck. A spot beam reaches far down the road and suits faster trail driving. A flood beam spreads light wide and short, which suits work sites and camping. A combo bar mixes both, which makes it the most flexible choice if you use your truck for a bit of everything.
Do I need a relay for an LED light bar?
Most light bars are installed with a relay, fuse and switch, and many come with a wiring harness that includes all three. The relay lets a small switch circuit control the bar's higher-current circuit. Follow the bar maker's wiring instructions, and use a professional installer if you're unsure about 12-volt wiring.
Where is the best place to mount a light bar on a truck?
A roof or cab rack mount throws light the farthest but can cause hood glare and wind noise. A bumper or bull bar mount sits low, lights the ground ahead and is easier to wire and aim. A rear bumper or bed rack mount works well for work lights. Pick the spot that matches how you use the light.
Build Your Truck Your Way With Love-Truck.com
The best LED light bar for truck owners fits the mounting spot, uses the right beam pattern and is wired safely.
- Want reach and spread in one bar? Look at a combo bar like the TrailFX 30-inch LED light bar.
- Need ditch lights or bumper pods? See our auxiliary lights.
- Want to see every option, from headlights to cargo lights? Browse all truck and Jeep lights.
As an Authorized Keystone Automotive dealer, we carry lighting from TrailFX, ARB, Oracle Lighting and Project X. Not sure what fits? Call (806) 621-1226 for a fitment check by phone.
