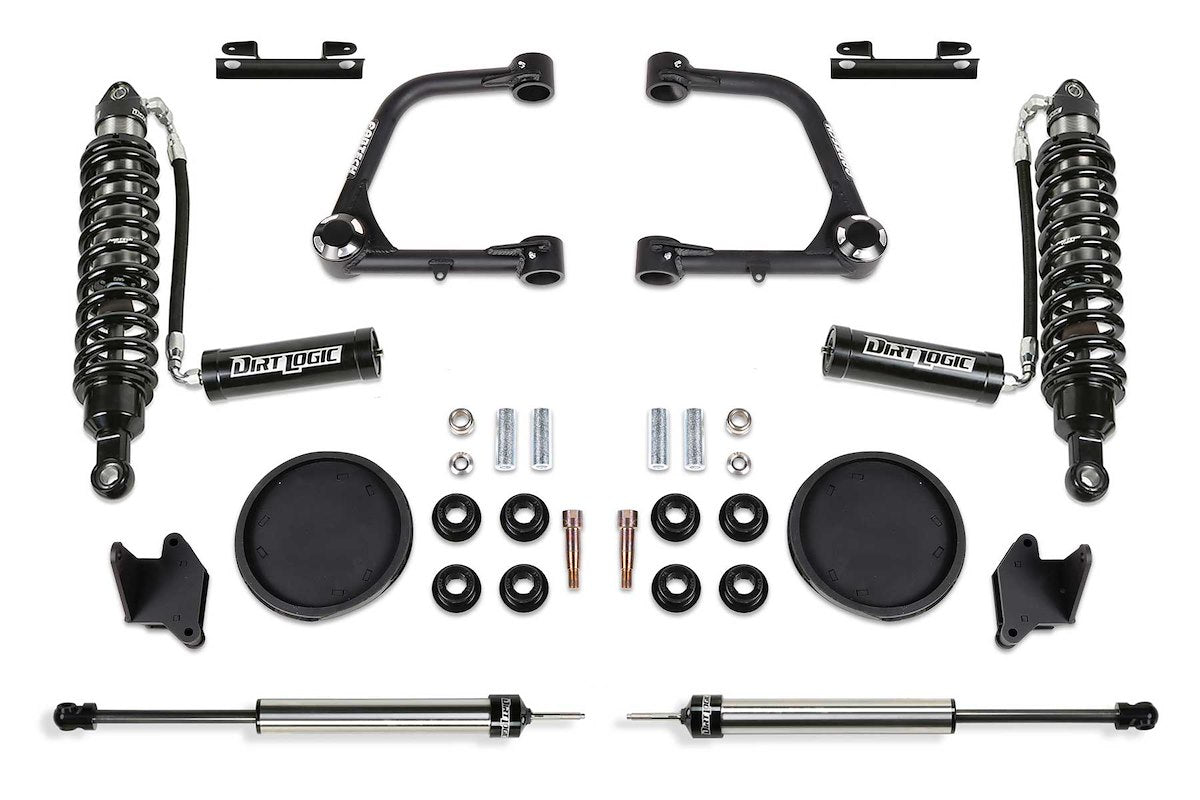

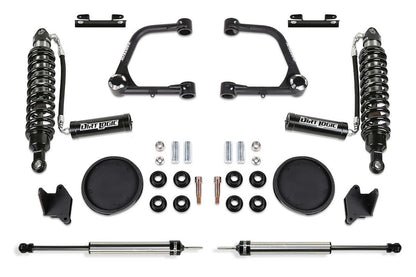

Fabtech 3" Lift Kit with Dirt Logic Resi Coilovers & Rear Shocks – Fits 2022-25 Toyota Tundra 4WD (Rear Coil Springs)

Straight answers

• Fits: 2022-25 Toyota Tundra 4WD (Rear Coil Springs). Check the vehicle fitment below before you order.
• Drivetrain: 4WD only.
• Fitment notes: Rear Coil Without Adaptive Variable Suspension.
• Front Lift Amount: 3 Inch.
• Rear Lift Amount: 3 Inch.
• Maximum Tire Size: 35 x 12.50.
• Front Lift Type: Control Arm.
• Rear Lift Type: Coil Spring.
• Shock Type: Nitrogen Gas Charged.
• Wheel Backspacing: 5 in.
• Minimum Wheel Diameter: 18.
• Shocks: With Front Dirt Logic Remote Reservoir Coil Over And Rear Dirt Logic Shock Absorbers.
• Color: Black Components/ Silver Shocks.

Not sure it fits your truck? Call (806) 621-1226 before you order and we'll check the fit for your year, make, model and drivetrain.

Fabtech's high quality Tundra lift kit offers increased height to run 33 Inch or 35 Inch tall tires with additional front suspension strength. This kit helps level the vehicle stance front to rear for a more aggressive appearance. The factory Tundra upper control arms are replaced with Fabtech's Uniball Upper Control Arms that provide an extra degree of caster compared to stock arms. The increased caster helps to balance steering effort with oversized tires. The Fabtech upper control arms are constructed of the finest material with 0.120 Inch wall 1-1/4 Inch Outer Diameter 4130 Chromoly steel tubing. High quality 1 Inch FK Stainless PTFE lined Uniball bearings are utilized in place of the small factory ball joints and allow for increased travel without bind. These super stout Tundra upper control arms are designed for longevity in rugged offroad conditions while providing a more positive on road feel. The Fabtech upper control arms have been designed to work in conjunction with the Dirt Logic 2.5 Coilover shocks to provide additional front wheel travel. The rear suspension receives Dirt Logic 2.25 shocks for a balanced ride. All Dirt Logics are constructed with a stainless steel body and a NitroSteel piston rod for maximum corrosion resistance in the harshest conditions. These Dirt Logics have been extensively tested and tuned to provide a superior ride quality both on and offroad. Rear lift is accomplished using coil spring spacers that provide the additional ride height.

Features

• Arms Eliminate The Upper Ball Joint With Super Strong 1 Inch ID Stainless American Uniball
• Chromoly Tubing Reduces Flex Found In Stock Arms For More Positive Road Feel
• 17-4 Stainless Steel Heat Treated Uniball Pin Fits Into Factory Ball Joint Taper Without Modification To The Spindle
• Front Dirt Logic 2.5 Coilovers
• Perfect System For The Daily Driver That Wants Increased Clearance To Run 33 Inch Or 35 Inch Tires
• Limited Lifetime Warranty

Specifications

• Brand: Fabtech
• Part Number: K7088DL
• Type: Lift Kit Suspension

Vehicle Fitment

• 2022-2025 Toyota Tundra – 4WD, Double Cab
  Note: Rear Coil Without Adaptive Variable Suspension
