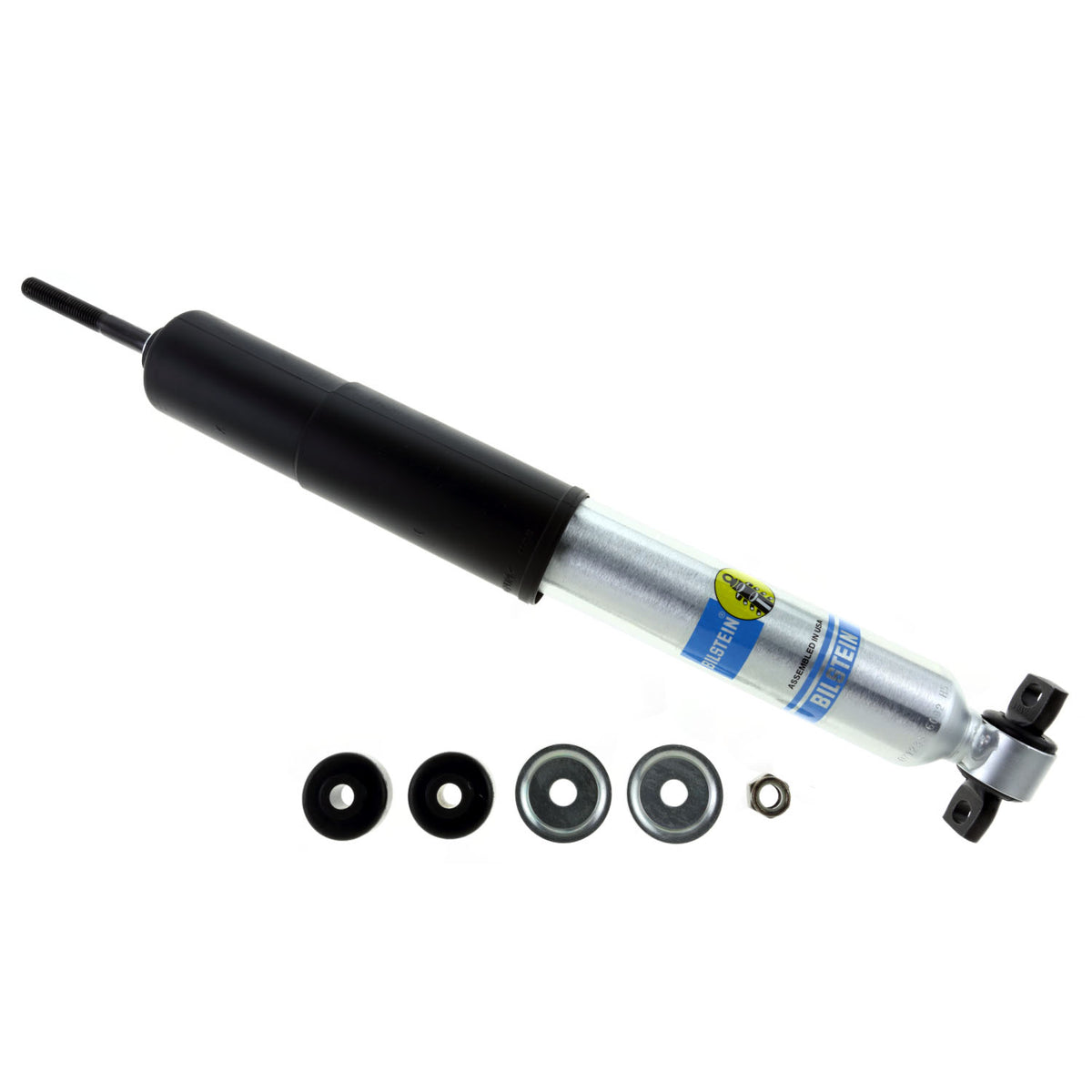

Bilstein B8 5100 Front Shock for 3" or 6" A-Arm Lift – Fits 1997-07 Silverado/Sierra 1500 2WD & F-150 2WD

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Position: Front  |  Sold individually – order 2 for a complete front pair.

Vehicle Applications

• 1999-2007 Chevrolet Silverado 1500 (incl. Classic & Z71) – 2WD, w/ Coil Front Springs, w/ 3" Lift w/ A-Arm Style Lift or 6" Lift w/ A-Arm & Lift Spindle Style Lift, w/o Quadrasteer & ZX3 Electronic Suspension (Front)
• 1999-2007 GMC Sierra 1500 (incl. Classic & Hybrid) – 2WD, w/ Coil Front Springs, w/ 3" Lift w/ A-Arm Style Lift or 6" Lift w/ A-Arm & Lift Spindle Style Lift, w/o Quadrasteer & ZX3 Electronic Suspension (Front)
• 1997-2004 Ford F-150 (incl. Harley-Davidson & Heritage) – 2WD, w/ 3" Lift w/ A-Arm Style Lift or 6" Lift w/ A-Arm & Lift Spindle Style Lift (Front)
• 1997-2002 Ford Expedition – 2WD, w/ 3" Lift w/ A-Arm Style Lift or 6" Lift w/ A-Arm & Lift Spindle Style Lift (Front)

Specifications

• Part Number: 24-185400
• Series: B8 5100
• Weight (lbs): 3.58
• Collapsed Length (in): 11.30
• Extended Length (in): 17.58
• Stroke/travel Length (in): 6.28
• Lower Mount Type: Bar Pin
• Upper Mount Type: Stem
• Internal Design: Monotube
• Finish: Zinc Plated
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Boot Included: Black Straight
• Shaft Diameter: 14mm
• Adjustable Damping: Non-Adjustable
• Country of Origin: MX
• Quantity per Vehicle: 1
• Warranty: Limited Lifetime Warranty
