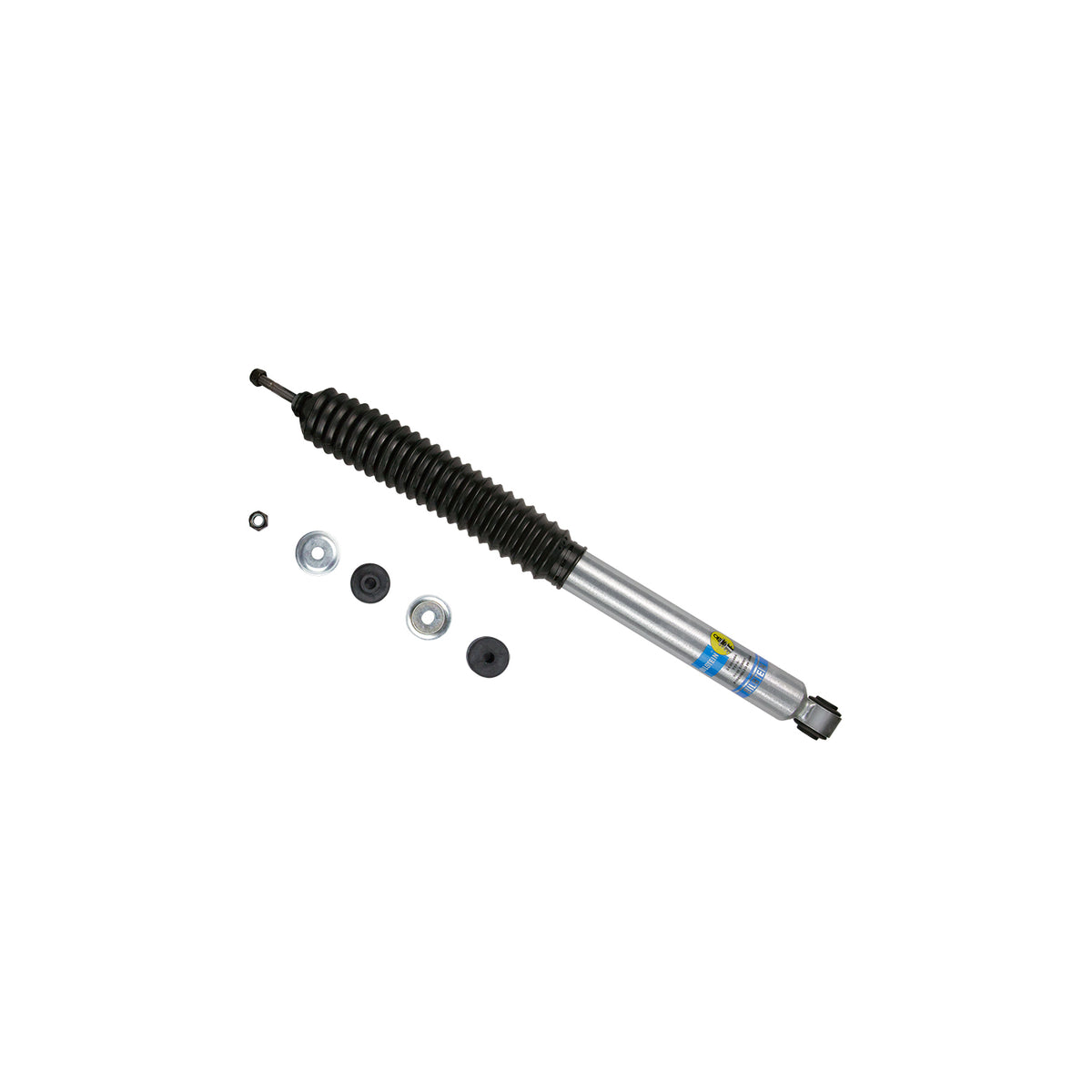

Bilstein B8 5100 Front Shock for 4-5" Lift & more – Fits 1994-13 Ram 2500, 1994-12 Ram 3500 & More

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Position: Front  |  Sold individually – order 2 for a complete front pair.

Vehicle Applications

• 1994-2001 Ram 1500 – 4WD, w/ 5-6" Lift (Front)
• 2006-2008 Ram 1500 – Mega Cab, 4WD, w/ 4-5" Lift (Front)
• 1994-2002 Ram 2500 – 4WD, w/ 4" Lift (Front)
• 2003-2013 Ram 2500 – 4WD, w/ 4-5" Lift (Front)
• 1994-2002 Ram 3500 – 4WD, w/ 4" Lift (Front)
• 2003-2012 Ram 3500 – 4WD, w/ 4-5" Lift (Front)

Specifications

• Part Number: 24-066464
• Series: B8 5100
• Weight (lbs): 5.80
• Collapsed Length (in): 16.34
• Extended Length (in): 27.32
• Stroke/travel Length (in): 10.98
• Lower Mount Type: Eye 14.1mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Finish: Zinc Plated
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Boot Included: Black Bellows
• Shaft Diameter: 14mm
• Adjustable Damping: Non-Adjustable
• Country of Origin: MX
• Quantity per Vehicle: 1
• Warranty: Limited Lifetime Warranty
