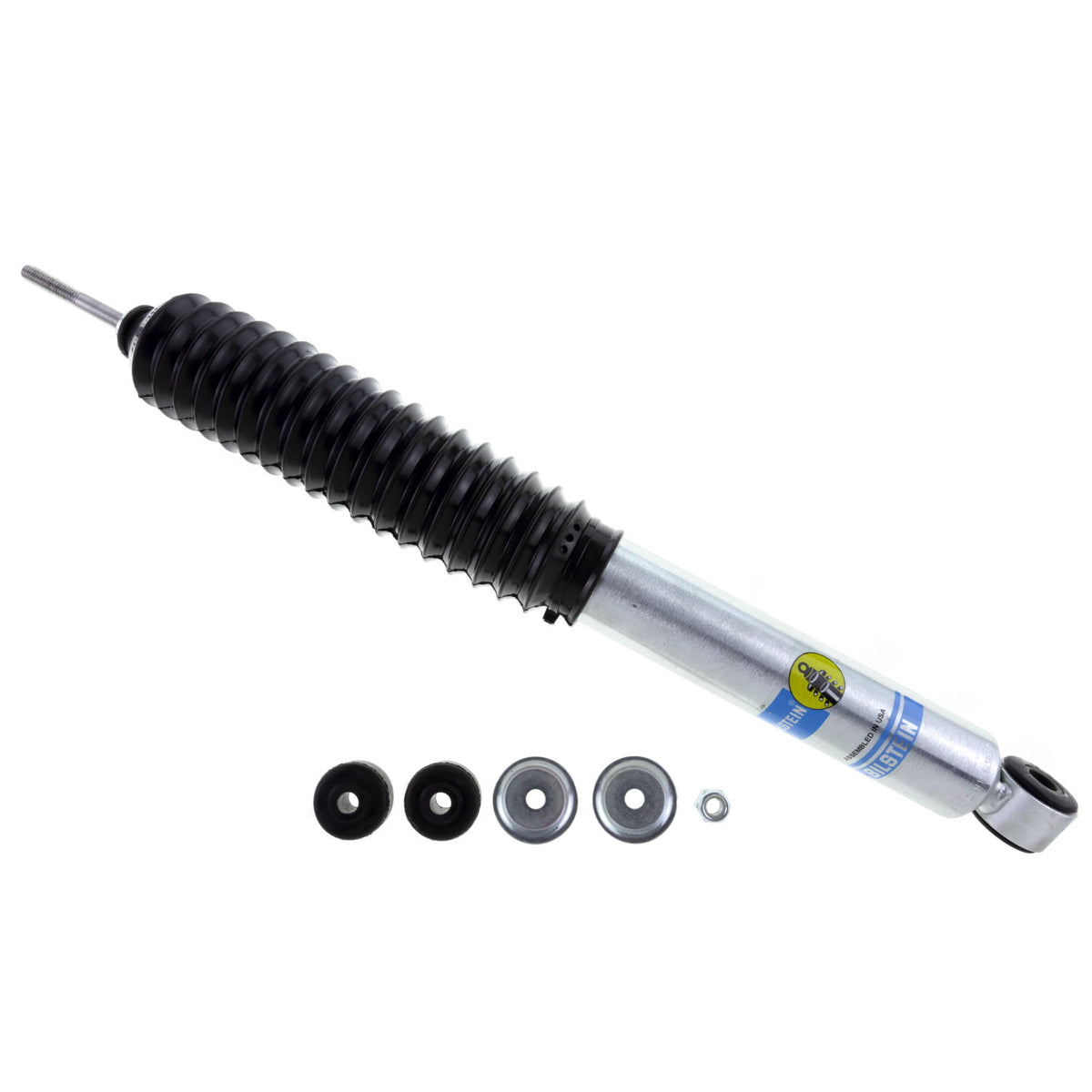

Bilstein B8 5100 Front Shock for 4-6" Lift – Fits 1999-10 Silverado/Sierra 2500 & 3500 HD

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Position: Front  |  Sold individually – order 2 for a complete front pair.

Vehicle Applications

• 2001-2007 Chevrolet Silverado 1500 HD (incl. Classic) – w/ 4-6" Lift, w/o Quadrasteer & ZX3 Electronic Suspension (Front)
• 1999-2010 Chevrolet Silverado 2500 / 2500 HD (incl. Classic & New Body) – w/ 4-6" Lift, w/o Quadrasteer (Front)
• 2001-2010 Chevrolet Silverado 3500 (incl. Classic & New Body) – 2WD w/ Independent Front Suspension or 4WD, w/ 4-6" Lift (Front)
• 2001-2007 GMC Sierra 1500 HD (incl. Classic) – w/ 4-6" Lift, w/o Quadrasteer & ZX3 Electronic Suspension (Front)
• 1999-2010 GMC Sierra 2500 / 2500 HD (incl. Classic & New Body) – w/ 4-6" Lift, w/o Quadrasteer (Front)
• 2001-2010 GMC Sierra 3500 (incl. Classic & New Body) – 2WD w/ Independent Front Suspension or 4WD, w/ 4-6" Lift (Front)

Specifications

• Part Number: 24-187183
• Series: B8 5100
• Weight (lbs): 4.22
• Collapsed Length (in): 13.52
• Extended Length (in): 21.46
• Stroke/travel Length (in): 7.94
• Lower Mount Type: Eye 14.1mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Finish: Zinc Plated
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Boot Included: Black Bellows
• Shaft Diameter: 14mm
• Adjustable Damping: Non-Adjustable
• Country of Origin: MX
• Quantity per Vehicle: 1
• Warranty: Limited Lifetime Warranty
