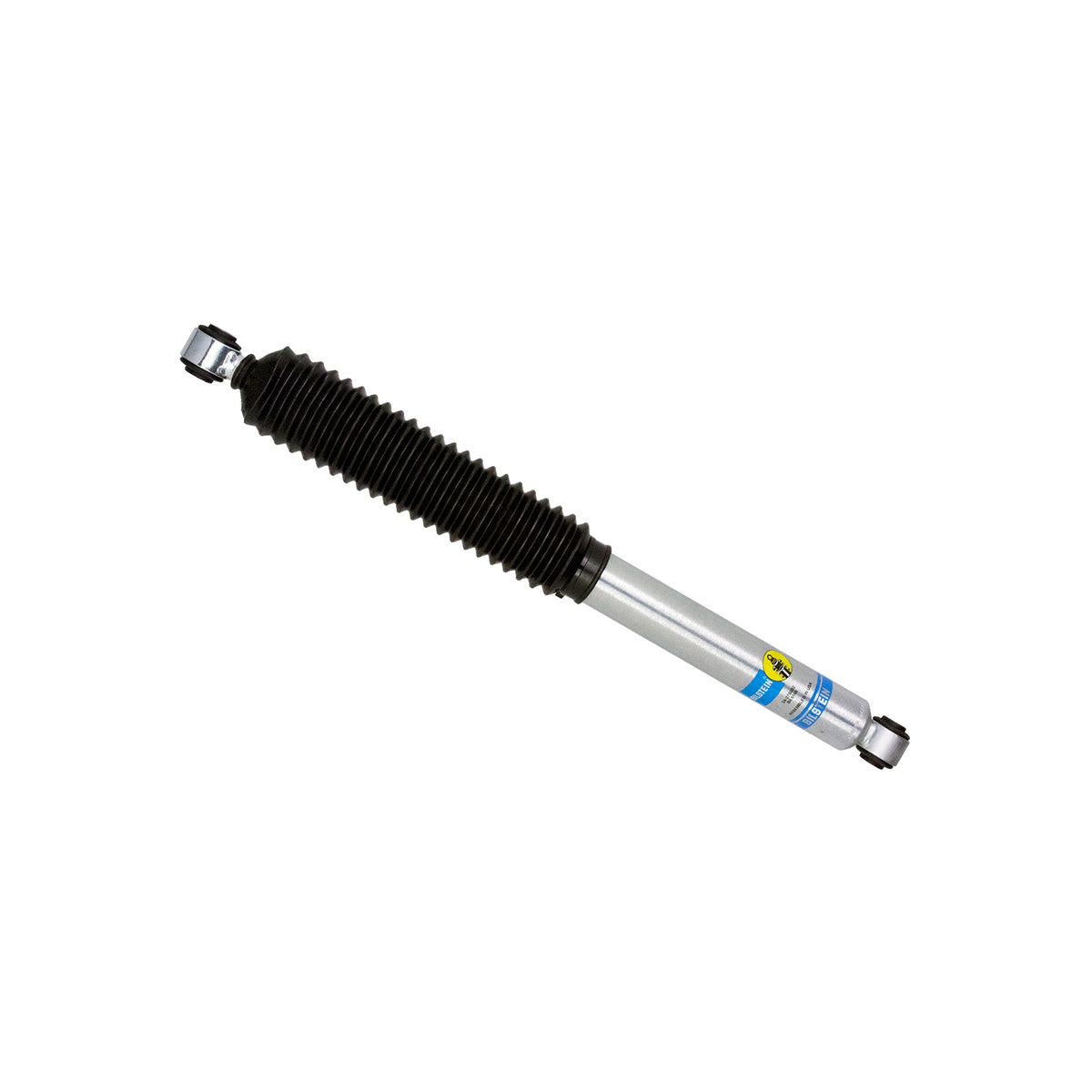

Bilstein B8 5100 Rear Shock for 0-1" Lift – Fits 2009-18 Ram 1500 & 2019-21 Ram 1500 Classic 2WD

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Position: Rear  |  Sold individually – order 2 for a complete rear pair.

Vehicle Applications

• 2009-2018 Ram 1500 – 2WD, w/ 0-1" Lift (Rear)
• 2019-2021 Ram 1500 Classic – 2WD, w/ 0-1" Lift (Rear)

Specifications

• Part Number: 24-275002
• Series: B8 5100
• Weight (lbs): 5.60
• Collapsed Length (in): 16.44
• Extended Length (in): 26.07
• Stroke/travel Length (in): 9.60
• Lower Mount Type: Eye 14.2mm
• Upper Mount Type: Eye 14.2mm
• Internal Design: Monotube
• Finish: Zinc Plated
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Boot Included: Black Bellows
• Shaft Diameter: 14mm
• Country of Origin: MX
• Quantity per Vehicle: 1
• Warranty: Limited Lifetime Warranty
