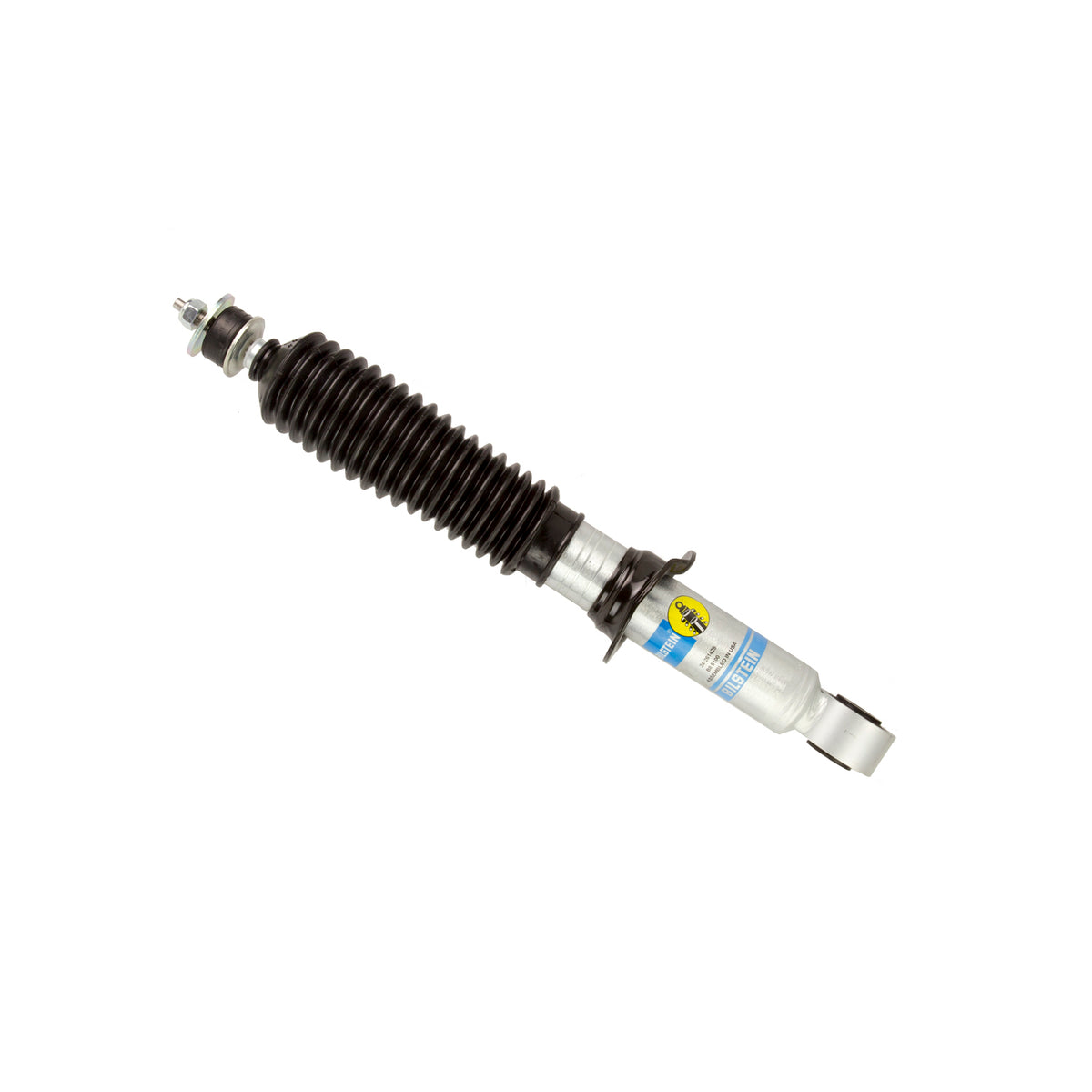

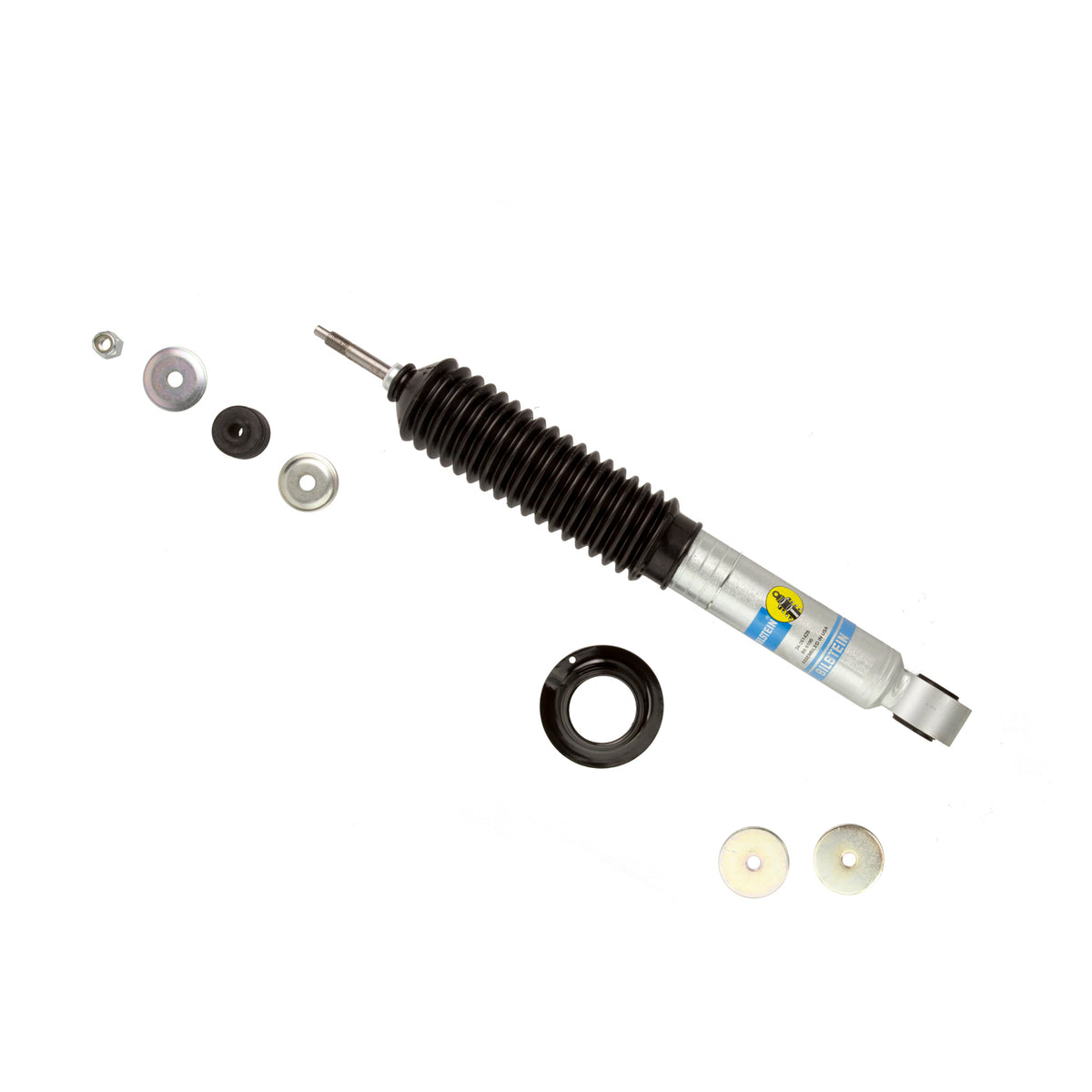

Bilstein B8 5100 Ride Height Adjustable Front Shock for 0-2.7" Lift – Fits 2000-06 Toyota Tundra

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Position: Front  |  Sold individually – order 2 for a complete front pair.

Vehicle Applications

• 2000-2006 Toyota Tundra – 2WD, Access Cab, w/ 0-2.7" Lift (Front)
• 2004-2006 Toyota Tundra – 2WD, Double Cab, w/ 0-2.5" Lift (Front)
• 2000-2006 Toyota Tundra – 4WD, Access Cab, w/ 0-1.1" Lift (Front)
• 2004-2006 Toyota Tundra – 4WD, Double Cab, w/ 0-1.6" Lift (Front)

Specifications

• Part Number: 24-261425
• Series: B8 5100 (Ride Height Adjustable)
• Weight (lbs): 7.01
• Collapsed Length (in): 13.23
• Extended Length (in): 18.37
• Stroke/travel Length (in): 5.12
• Lower Mount Type: Eye 14.4mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Finish: Zinc Plated
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Boot Included: Black Bellows
• Shaft Diameter: 14mm
• Country of Origin: US
• Quantity per Vehicle: 1
• Warranty: Limited Lifetime Warranty
