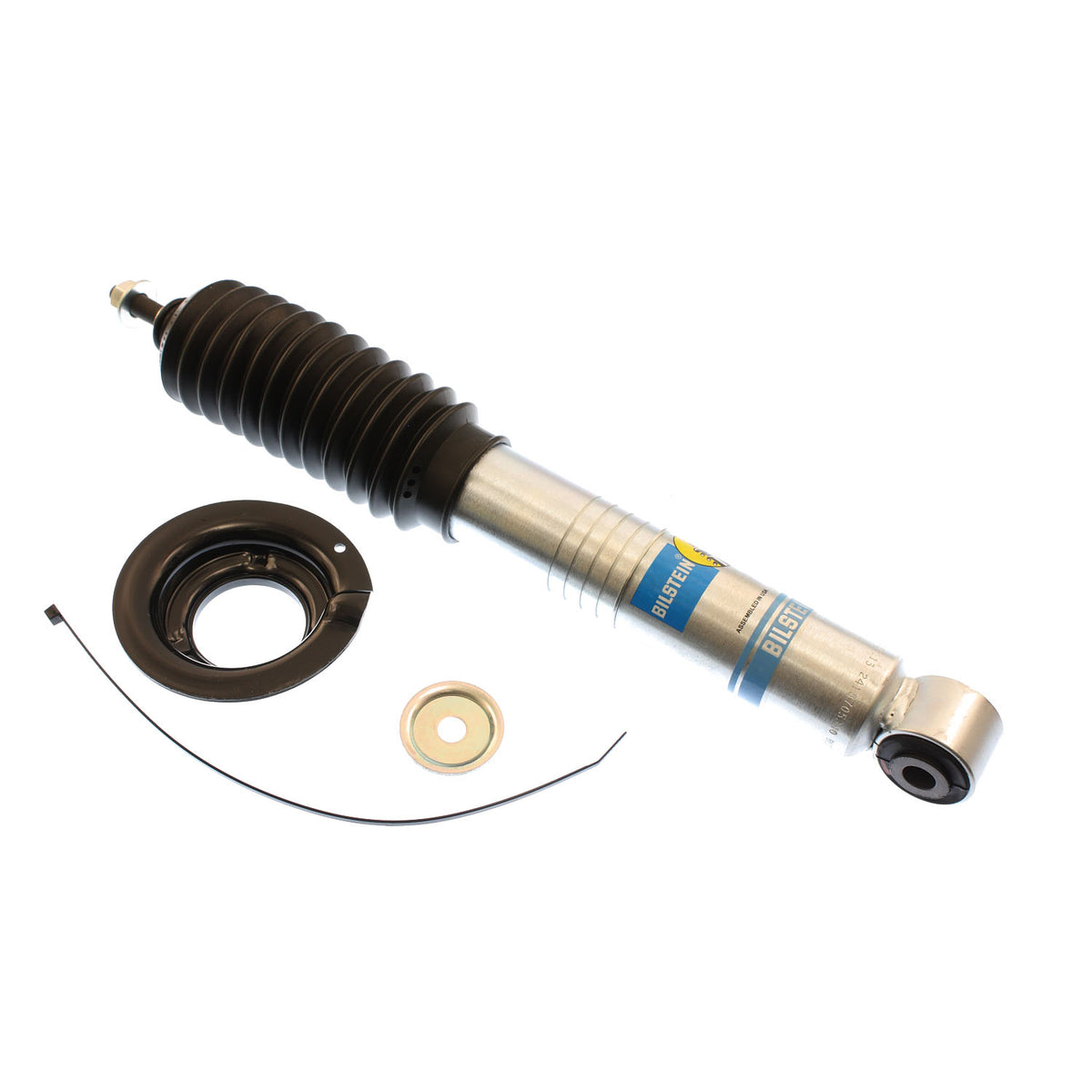

Bilstein B8 5100 Ride Height Adjustable Front Shock for 0-2" Lift – Fits 2005-13 Nissan Frontier & 2005-12 Xterra

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Position: Front  |  Sold individually – order 2 for a complete front pair.

Vehicle Applications

• 2005-2013 Nissan Frontier – w/ 0-2" Lift (Front)
• 2005-2012 Nissan Xterra – w/ 0-2" Lift (Front)
• 2009-2012 Suzuki Equator – w/ 0-2" Lift (Front)

Specifications

• Part Number: 24-187053
• Series: B8 5100 (Ride Height Adjustable)
• Weight (lbs): 4.96
• Collapsed Length (in): 10.55
• Extended Length (in): 15.26
• Stroke/travel Length (in): 4.71
• Lower Mount Type: Eye 14mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Finish: Zinc Plated
• Reservoir: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Boot Included: Black Bellows
• Shaft Diameter: 14mm
• Adjustable Damping: Non-Adjustable
• Country of Origin: MX
• Quantity per Vehicle: 1
• Warranty: Limited Lifetime Warranty
