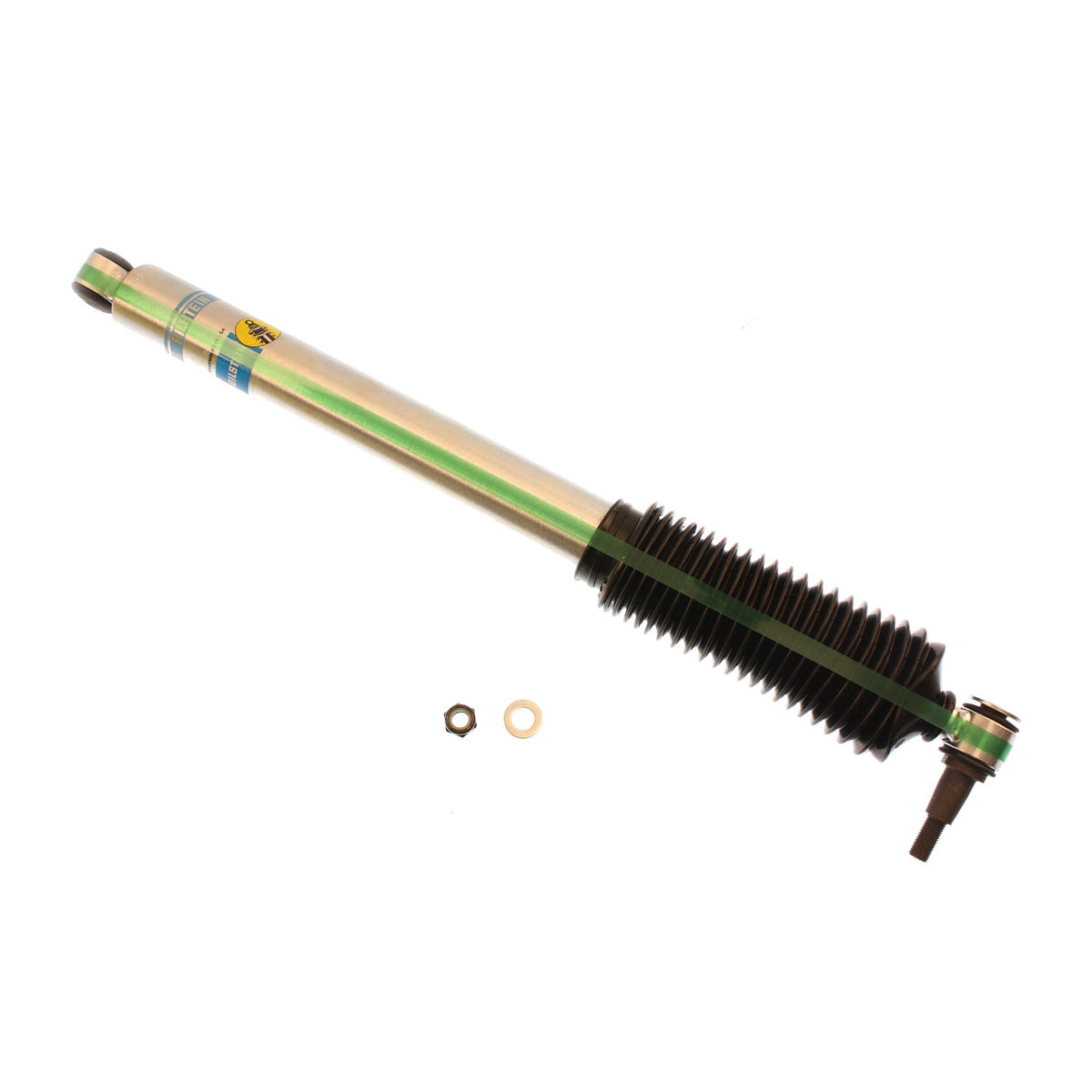

Bilstein B8 5100 Steering Damper – Fits 2008-16 Ford F-250/F-350 Super Duty 4WD

Bilstein B8 5100 (Steering Damper) is designed as an upgrade to factory steering dampers on trucks and SUVs. Utilizing our proven design, these steering dampers are able to dampen minute movements in the steering and reduce steering vibrations that naturally occur, especially in older vehicles. These steering dampers are zinc coated for resistance to harsh elements and match to all B8 5100 series products. B8 5100 (Steering Damper) will offer a significant improvement in steering, handling and comfort.

Vehicle Applications

• 2008-2013 Ford F-250 – 4WD (incl. Harley-Davidson)
• 2008-2016 Ford F-350 – 4WD (incl. Harley-Davidson)

Specifications

• Part Number: 24-196284
• Series: B8 5100 (Steering Damper)
• Weight (lbs): 5.60
• Collapsed Length (in): 19.13
• Extended Length (in): 27.44
• Stroke/travel Length (in): 8.31
• Lower Mount Type: Cantilever
• Upper Mount Type: Eye 12mm
• Internal Design: Monotube
• Finish: Zinc Plated
• Body Design: Smooth Body (Non-Coilover)
• Piston Diameter: 46mm
• Boot Included: Black Bellows
• Country of Origin: US
• Quantity per Vehicle: 1
• Warranty: Limited Lifetime Warranty
