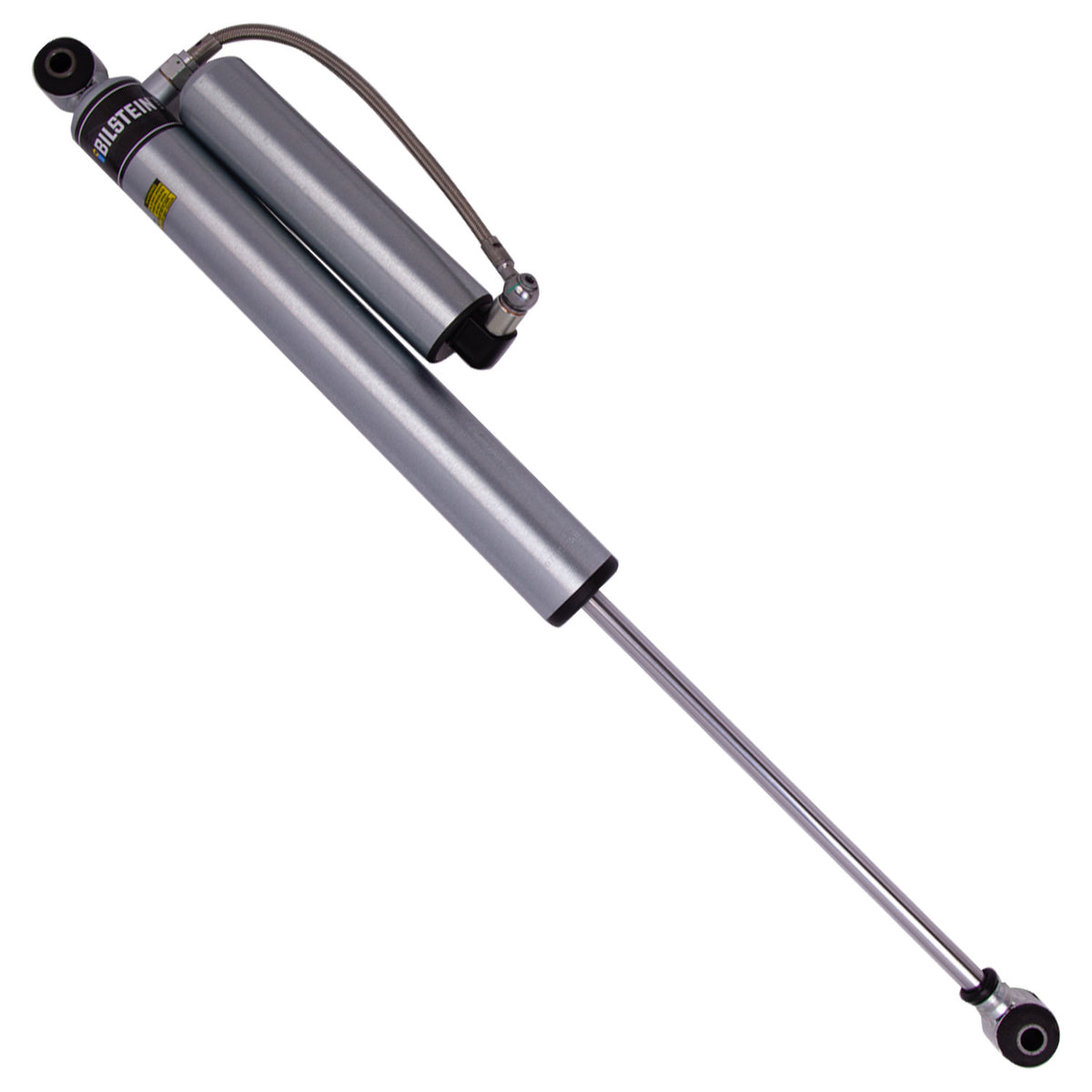

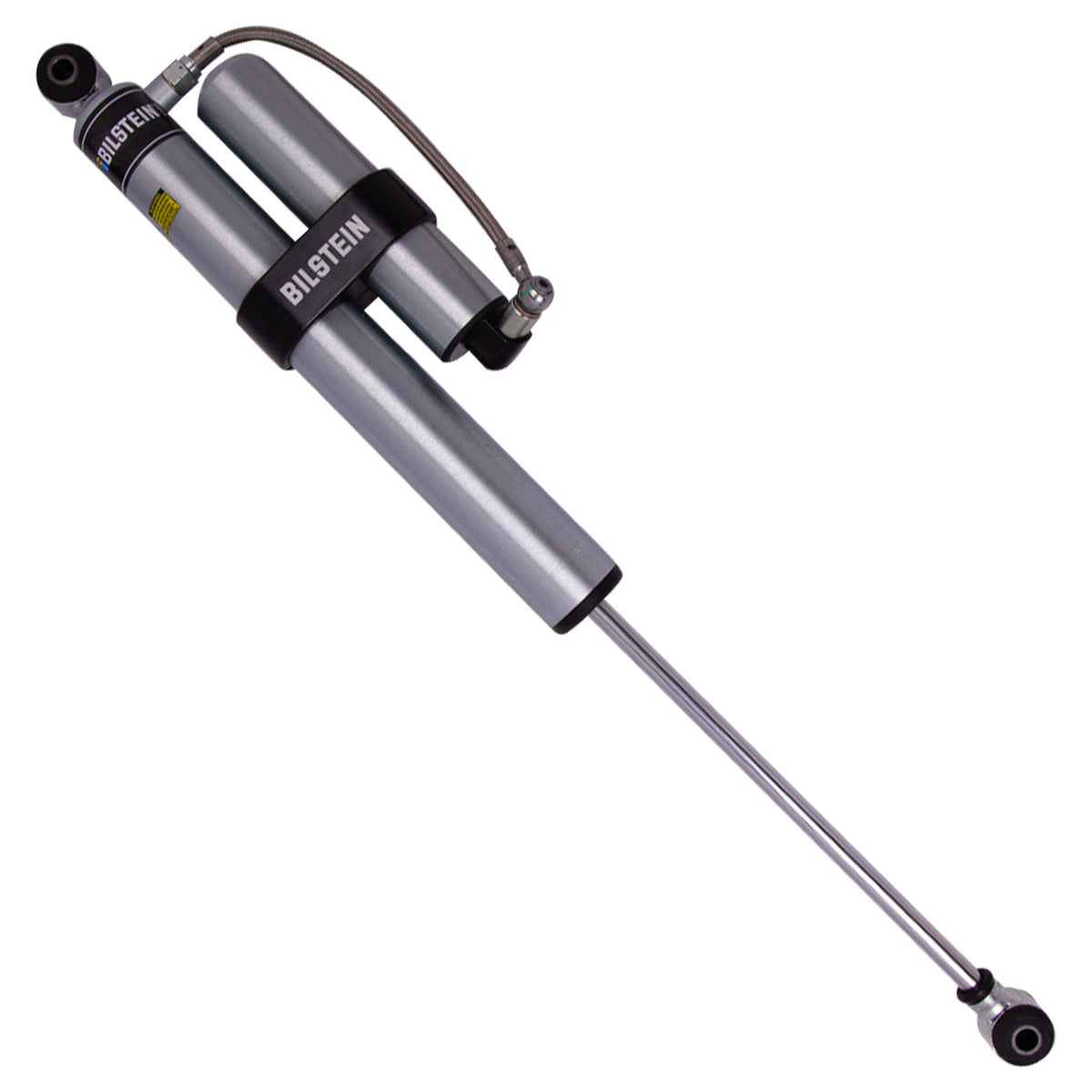

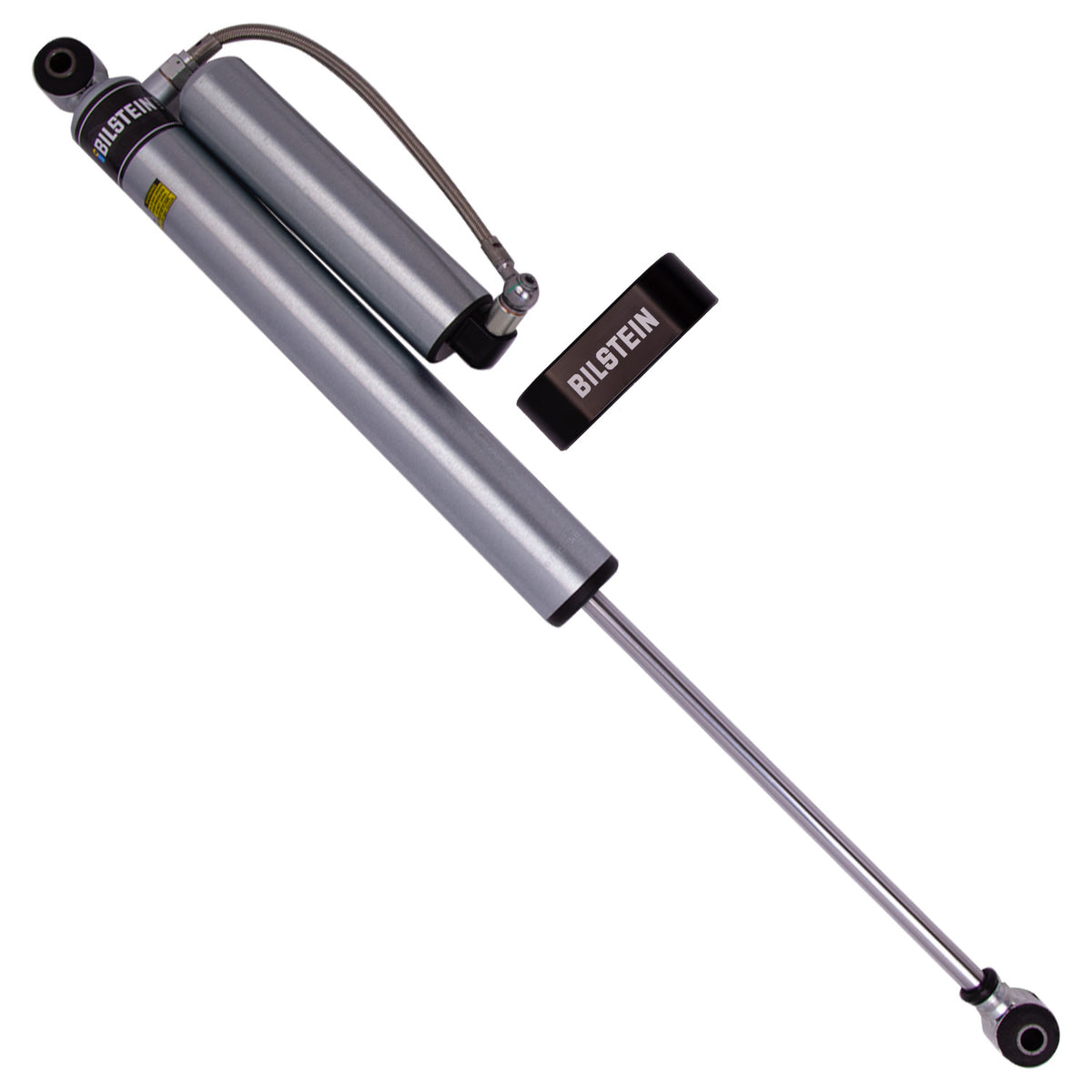

Bilstein B8 5160 Reservoir Rear Shock for 0-2" Lift – Fits 2015-22 Ford F-150 4WD

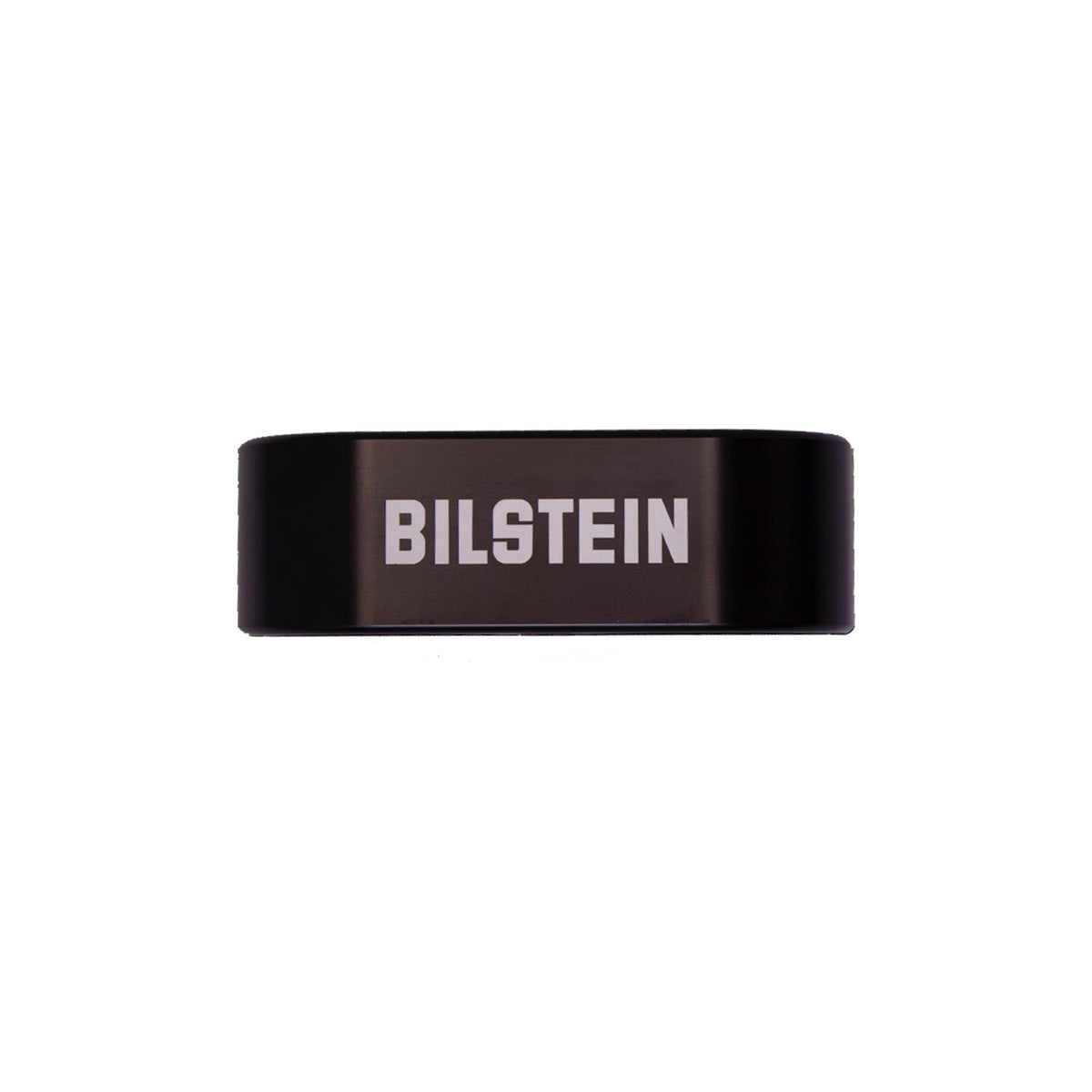

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Position: Rear  |  Sold individually – order 2 for a complete rear pair.

Vehicle Applications

• 2015-2022 Ford F-150 – 4WD, w/ 0-2" Lift, w/o Continuously Controlled Damping (Rear)

Specifications

• Part Number: 25-311372
• Series: B8 5160
• Weight (lbs): 8.20
• Collapsed Length (in): 17.52
• Extended Length (in): 29.50
• Stroke/travel Length (in): 11.98
• Lower Mount Type: Eye 12mm
• Upper Mount Type: Eye 12mm
• Internal Design: Monotube
• Finish: Zinc Plated
• Reservoir: Yes (Remote)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Country of Origin: US
• Quantity per Vehicle: 1
• Warranty: Limited 2-Year Warranty
