Fabtech 4" Lift Kit with Dirt Logic Shocks – Fits 2014-19 Silverado/Sierra 1500

Straight answers

• Fits: 2014-19 Silverado/Sierra 1500. Check the vehicle fitment below before you order.
• Drivetrain: 2WD and 4WD.
• Fitment notes: Some trims have conditions (wheels, control arms, ride-control options); see the vehicle fitment list below.
• Front Lift Amount: 4 Inch.
• Rear Lift Amount: 4 Inch.
• Maximum Tire Size: 30 x 11.50.
• Front Lift Type: Coil Over Shock Absorber.
• Rear Lift Type: Lift Blocks And U-Bolts.
• Shock Type: Hydraulic And Nitrogen Gas Charged.
• Wheel Backspacing: 4.5 in.
• Minimum Wheel Diameter: 17.
• Wheel Offset (mm): 0.
• Shocks: With Front Dirt Logic SS 2.5 Coil Over Shock Absorbers And Rear Dirt Logic SS Shock Absorbers.
• Color: Black Components/ Silver Shocks.

Not sure it fits your truck? Call (806) 621-1226 before you order and we'll check the fit for your year, make, model and drivetrain.

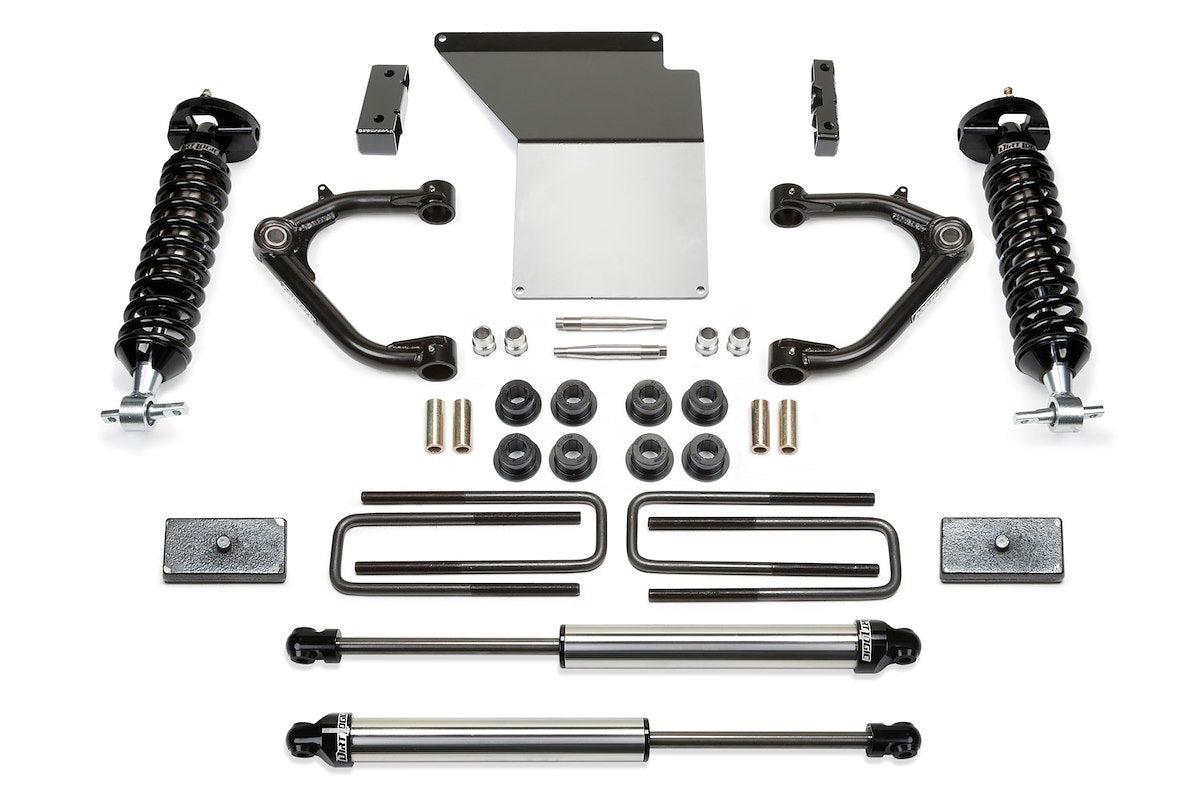

This system offers a mild lift height with easy installation for clearance of 33 Inch tall tires on K1500s. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including 0.120 Inch wall 4130 Chromoly tubing with a 1.50 Inch Outer Diameter and 1 Inch FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 Inch thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1-1/2 Inch rear lift block and U-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use.

Features

• Best In Class System For Aggressive Offroad Use And Good Highway Ride
• Increased Ground Clearance
• Top Quality Uniball Upper Control Arms For Aggressive Offroad Use
• 1 Inch ID FK Uniballs With PTFE For Ultimate Strength
• Features Dirt Logic 2.5 Coilovers For Superior Damping
• Increased Fender Clearance Compared To A Leveling Kit For 33 Inch Tall Tires
• Suspension Can Be Restored To Stock
• Limited Lifetime Warranty

Specifications

• Brand: Fabtech
• Part Number: K1071DL
• Type: Lift Kit Suspension

Vehicle Fitment

• 2014-2018 Chevrolet Silverado 1500 – 2WD/4WD, Crew Cab, Double Cab, Standard Cab
  Note: Cannot Use OEM Wheels For Use With Factory Aluminum Control Arms; Cannot Use OEM Wheels With Forged Aluminum Or Stamped Steel Control Arms
• 2019 Chevrolet Silverado 1500 LD (Old Model) – 2WD/4WD
  Note: Cannot Use OEM Wheels With Forged Aluminum Or Stamped Steel Control Arms
• 2014-2018 GMC Sierra 1500 – 2WD/4WD, Double Cab, Crew Cab, Standard Cab
  Note: Cannot Use OEM Wheels For Use With Factory Aluminum Control Arms Without Magneride Suspension; Cannot Use OEM Wheels With Forged Aluminum Or Stamped Steel Control Arms Without Magneride Suspension
• 2019 GMC Sierra 1500 Limited (Old Model) – 2WD/4WD
  Note: Cannot Use OEM Wheels With Forged Aluminum Or Stamped Steel Control Arms Without Magneride Suspension
