Fabtech 4" Basic Lift Kit – Fits 2014-18 GMC Sierra 1500 4WD (Magneride, Factory Steel Control Arms)

Straight answers

• Fits: 2014-18 GMC Sierra 1500 4WD (Magneride, Factory Steel Control Arms). Check the vehicle fitment below before you order.
• Drivetrain: 4WD only.
• Fitment notes: For Use With Factory Steel Control Arms Only With Magneride Suspension Cannot Use OEM Wheel And Tire; With Forged Steel Control Arms With Magneride Suspension Cannot Use OEM Wheel And Tire.
• Front Lift Amount: 4 Inch.
• Rear Lift Amount: 4 Inch.
• Maximum Tire Size: 33 x 12.50.
• Front Lift Type: Strut Assembly Spacer.
• Rear Lift Type: Lift Blocks And U-Bolts.
• Shock Type: Without Shocks.
• Wheel Backspacing: 4.5 in.
• Minimum Wheel Diameter: 17.
• Wheel Offset (mm): 0.
• Shocks: Without Shock Absorbers - Shock Change Not Required.
• Color: Black.

Not sure it fits your truck? Call (806) 621-1226 before you order and we'll check the fit for your year, make, model and drivetrain.

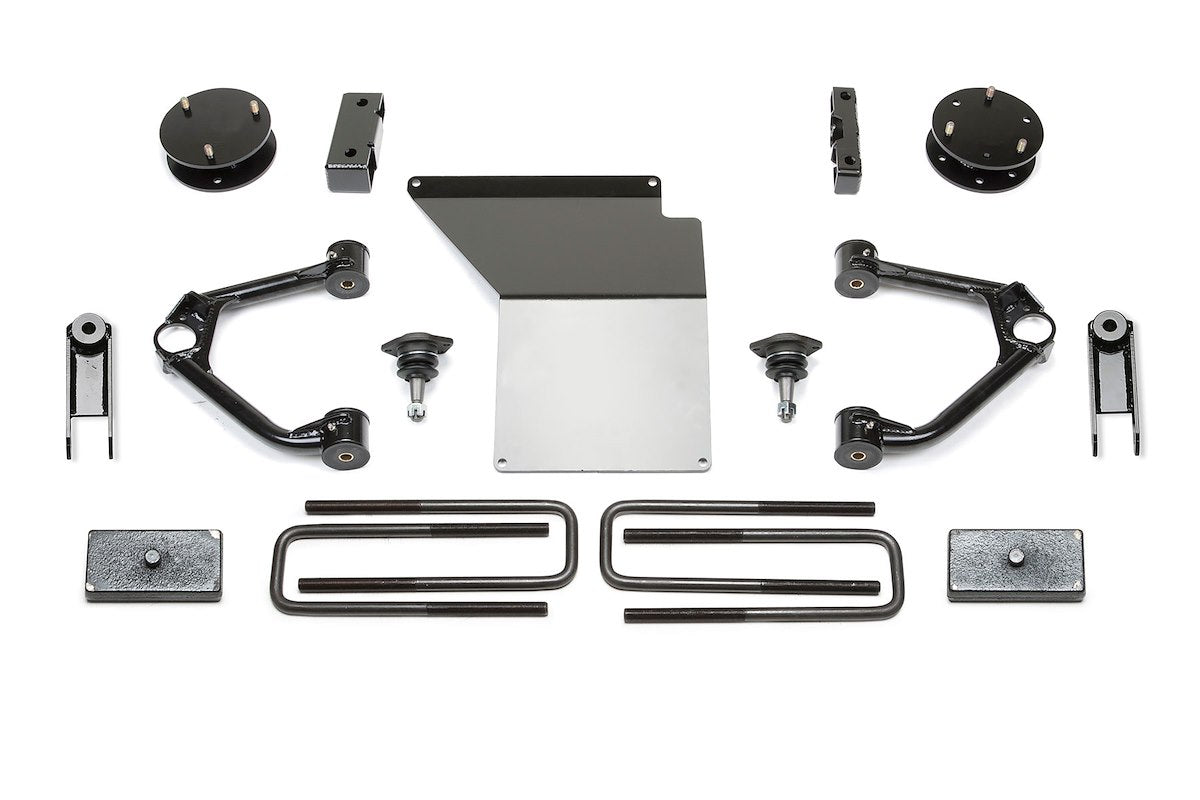

This system offers a mild lift height with easy installation for clearance of 33 Inch tall tires on K1500's with factory Magnetic Ride Control suspension. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with thick wall DOM tubular arms that feature heavy-duty extended range ball joints. These ball joints provide additional strength to the vehicles suspension compared to the factory. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 Inch thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1-1/2 Inch rear lift block and u-bolts to help level the stance of the vehicles.

Features

• Value Priced System With Fabtech Quality
• Increased Ground Clearance
• Extended Range Upper Ball Joints Provide A Smooth Quiet Ride
• Increased Fender Clearance Compared To A Leveling Kit For 33 Inch Tall Tires
• Suspension Can Be Restored To Stock
• Easy To Install
• Limited Lifetime Warranty

Specifications

• Brand: Fabtech
• Part Number: K1097
• Type: Lift Kit Suspension

Vehicle Fitment

• 2014-2018 GMC Sierra 1500 – 4WD, Crew Cab
  Note: For Use With Factory Steel Control Arms Only With Magneride Suspension Cannot Use OEM Wheel And Tire; With Forged Steel Control Arms With Magneride Suspension Cannot Use OEM Wheel And Tire
