Fabtech 4" Uniball Lift Kit – Fits 2014-18 GMC Sierra 1500 4WD

Straight answers

• Fits: 2014-18 GMC Sierra 1500 4WD. Check the vehicle fitment below before you order.
• Drivetrain: 4WD only.
• Fitment notes: For Use With Factory Steel Control Arms Only With Magneride Suspension Cannot Use OEM Wheel And Tire; With Forged Steel Control Arms With Magneride Suspension Cannot Use OEM Wheel And Tire.
• Front Lift Amount: 4 Inch.
• Rear Lift Amount: 4 Inch.
• Maximum Tire Size: 33 x 12.50.
• Front Lift Type: Strut Assembly Spacer.
• Rear Lift Type: Lift Blocks And U-Bolts.
• Shock Type: Without Shocks.
• Wheel Backspacing: 4.5 in.
• Minimum Wheel Diameter: 17.
• Wheel Offset (mm): 0.
• Shocks: Without Shock Absorbers - Shock Change Not Required.
• Color: Black.

Not sure it fits your truck? Call (806) 621-1226 before you order and we'll check the fit for your year, make, model and drivetrain.

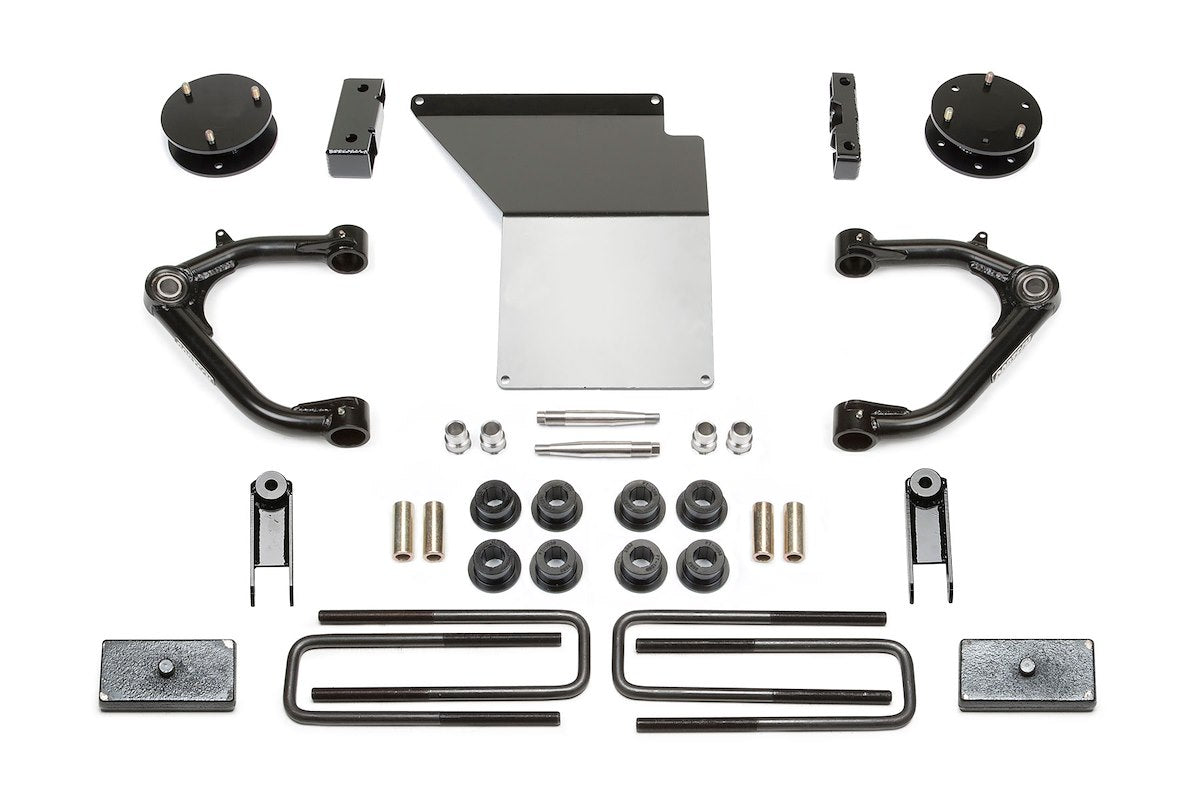

This system offers a mild lift height with easy installation for clearance of 33 Inch tall tires with factory Magnetic Ride Control suspension. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including 0.120 Inch wall 4130 Chromoly tubing with a 1.50 Inch outer Diameter and 1 Inch FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive off-road driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 Inch thick steel skid plate provides protection against off-road obstacles. Rear lift is accomplished with 1-1/2 Inch rear lift block and U-bolts to help level the stance of the vehicles.

Features

• Increased Ground Clearance
• Top Quality Uniball Upper Control Arms For Aggressive Offroad Use
• 1 Inch ID FK Uniballs With PTFE For Ultimate Strength
• Increased Fender Clearance Compared To A Leveling Kit For 33 Inch Tall Tires
• Suspension Can Be Restored To Stock
• Limited Lifetime Warranty

Specifications

• Brand: Fabtech
• Part Number: K1098
• Type: Lift Kit Suspension

Vehicle Fitment

• 2014-2018 GMC Sierra 1500 – 4WD, Crew Cab
  Note: For Use With Factory Steel Control Arms Only With Magneride Suspension Cannot Use OEM Wheel And Tire; With Forged Steel Control Arms With Magneride Suspension Cannot Use OEM Wheel And Tire
