Fabtech 4" Budget Lift Kit with Performance Shocks – Fits 2023-26 Ford F-250/F-350 Super Duty 4WD

Straight answers

• Fits: 2023-26 Ford F-250/F-350 Super Duty 4WD. Check the vehicle fitment below before you order.
• Drivetrain: 4WD only.
• Fitment notes: Without Onboard Scales; With Single Rear Wheel Without Onboard Scales.
• Front Lift Amount: 4 Inch.
• Rear Lift Amount: 4 Inch.
• Maximum Tire Size: 37 x 13.50.
• Front Lift Type: Coil Spring Spacer.
• Rear Lift Type: Lift Blocks And U-Bolts.
• Shock Type: Hydraulic.
• Wheel Backspacing: 4.75 in.
• Minimum Wheel Diameter: 17.
• Wheel Offset (mm): -6.35.
• Shocks: With Front And Rear Performance Shock Absorbers.
• Color: Black Components/ White Shocks.

Not sure it fits your truck? Call (806) 621-1226 before you order and we'll check the fit for your year, make, model and drivetrain.

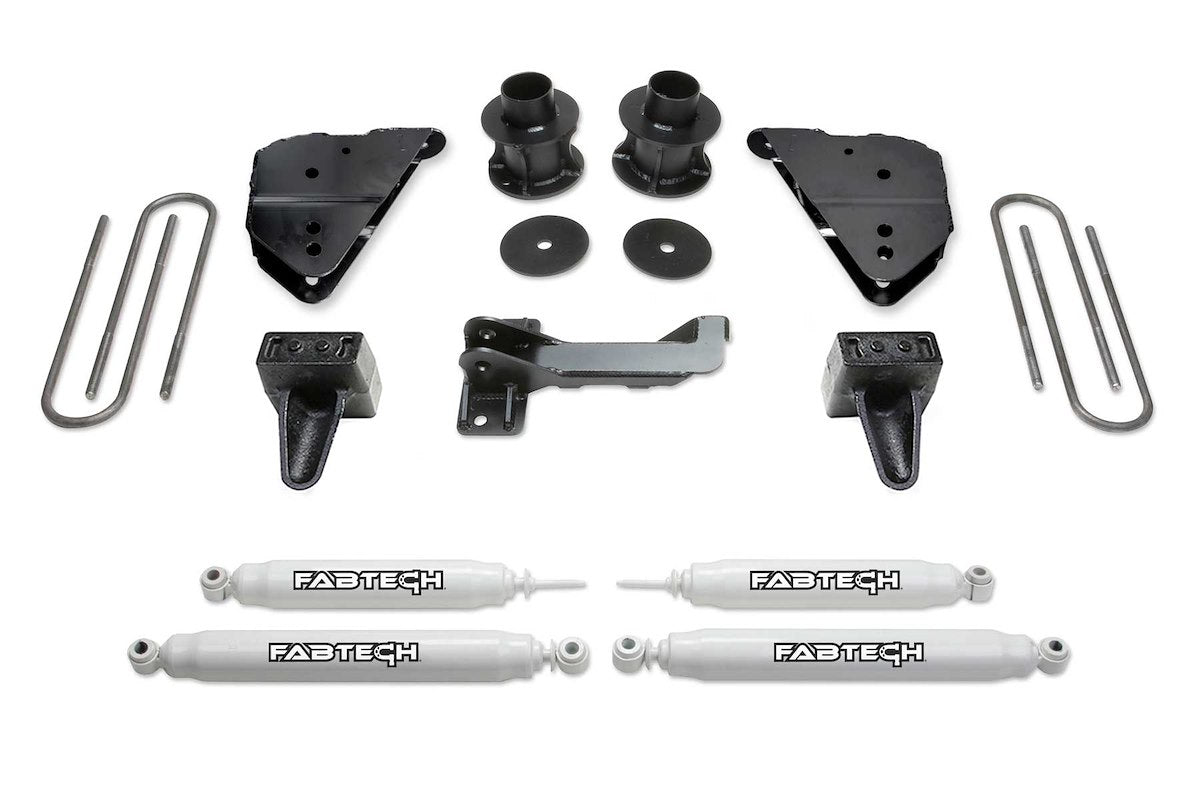

This entry level 4 Inch Budget Lift Kit utilizes the factory front coil springs with a steel upper spacer. 1/4 Inch thick steel drop brackets retain the factory radius arms with the correct caster setting for the increase ride height. A track bar relocation bracket has been designed to center the axle under the vehicle and still works properly with the factory pitman arm. This eliminates the need to replace the pitman arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. Run 35 Inch tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

Features

• Provides Superior Ride Control
• Features Twin Tube Hydraulic Construction
• Features 9/16 Inch Hardened Chrome Piston Rod
• Closed Cell Foam Insert To Reduce Shock Fade At High Speeds
• Features High Velocity 9-Stage Valving For Excellent Dampening Capabilities
• Limited Lifetime Warranty

Specifications

• Brand: Fabtech
• Part Number: K2404
• Type: Lift Kit Suspension

Vehicle Fitment

• 2023-2026 Ford F-250 Super Duty – 4WD
  Note: Without Onboard Scales
• 2023-2026 Ford F-350 Super Duty – 4WD
  Note: With Single Rear Wheel Without Onboard Scales
