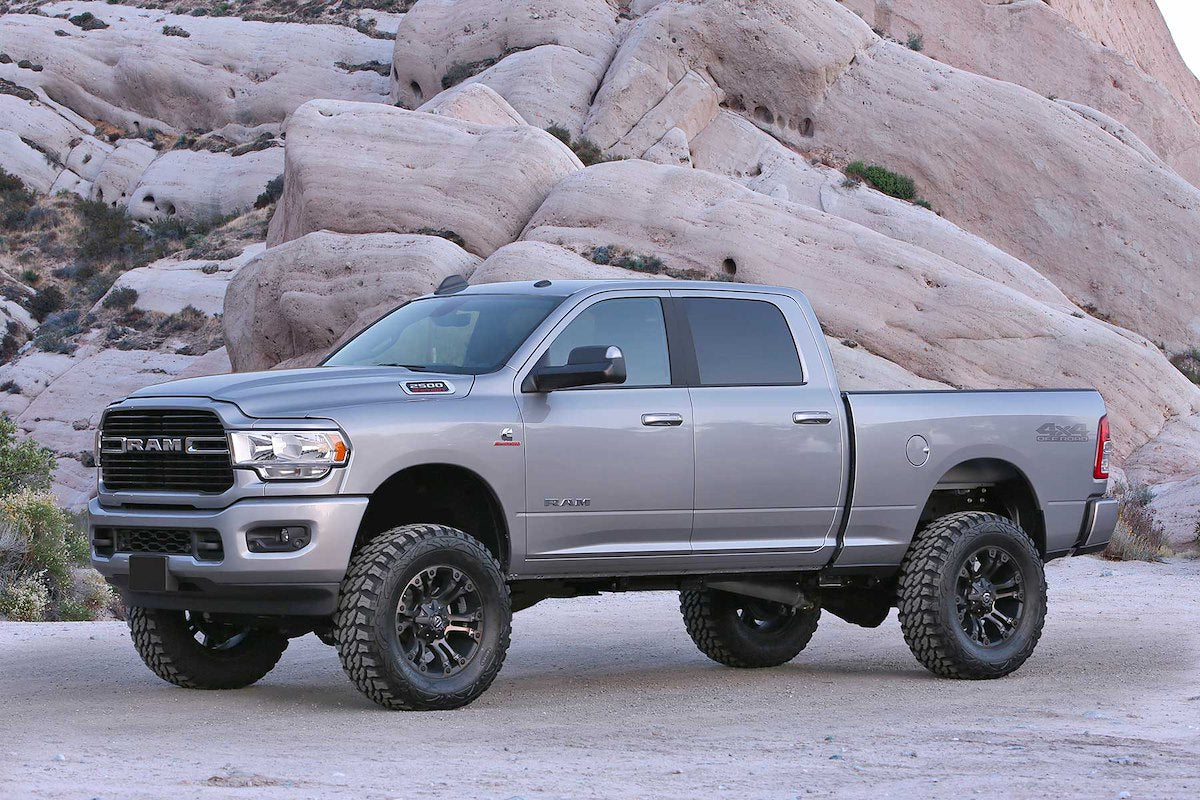

Fabtech 5" Stealth Lift Kit with Stealth Shocks – Fits 2019-24 Ram 2500 4WD

Straight answers

• Fits: 2019-24 Ram 2500 4WD. Check the vehicle fitment below before you order.
• Drivetrain: 4WD only.
• Fitment notes: Rear Coil Without Autoride Suspension.
• Front Lift Amount: 5 Inch.
• Rear Lift Amount: 5 Inch.
• Maximum Tire Size: 37 x 13.50.
• Front Lift Type: Coil Spring Spacer.
• Rear Lift Type: Coil Spring.
• Shock Type: Nitrogen Gas Charged.
• Wheel Backspacing: 5 in.
• Minimum Wheel Diameter: 17.
• Wheel Offset (mm): 0.
• Shocks: With Front And Rear Stealth Shock Absorbers.
• Color: Black.

Not sure it fits your truck? Call (806) 621-1226 before you order and we'll check the fit for your year, make, model and drivetrain.

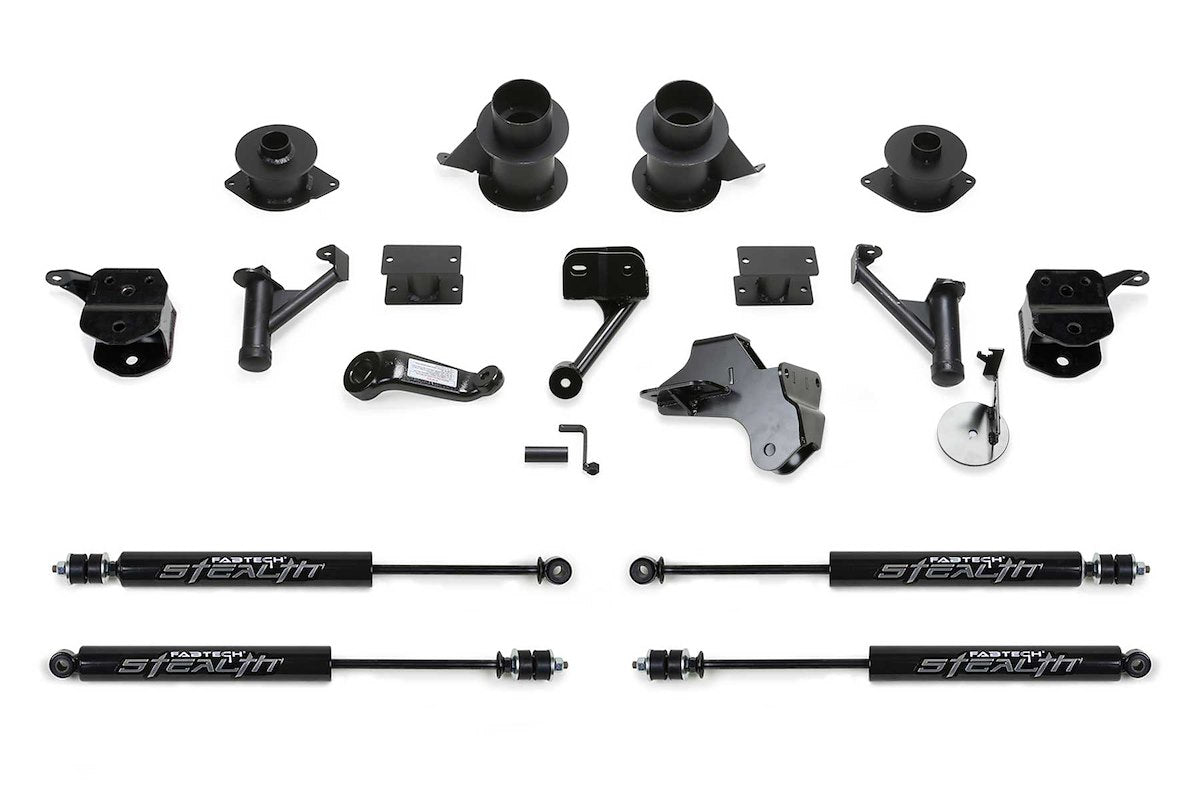

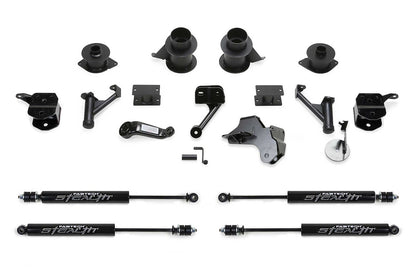

This high quality system has been designed to retain the factory load carrying capacity and ride of the vehicle with minimal parts. The factory Ram Radius Arms are relocated with heavy-duty 1/4 Inch thick steel brackets for proper caster with the 5 Inch lift. Super stout front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height. The stock coil springs are retained with angular steel spacers to retain the factory front spring bow. This is an important feature with the stock springs as Chrysler designed the bow to aid in their unique alignment specs and ride. Flat spacers do not provide this. The rear coil springs are also retained with steel spacers keeping the weight carrying capacity of the vehicle intact. A Fabtech innovation with this Ram lift kit is the heavy-duty steel front bump extensions. They retain the stock bump stop cushions for progressive damping and will not allow the suspension to over travel. This is a superior feature compared to replacement long length urethane bump stops as they can push out under harsh conditions and allow over traveling.

Features

• Retains Factory Coil Springs For Proper Handling And Load Carrying Capacity
• Heavy-Duty Radius Arm Drop Brackets Provide Proper Caster For The Increased Ride Height
• 1/4 Inch Thick Steel Bracket Construction Throughout For Added Strength
• Extended Length Monotube Shocks Have A Nitrocarb Piston Rod For Corrosion Resistance And Resist Rock Chipping
• Limited Lifetime Warranty

Specifications

• Brand: Fabtech
• Part Number: K3173M
• Type: Lift Kit Suspension

Vehicle Fitment

• 2019-2024 Ram 2500 – 4WD, Crew Cab, Mega Cab
  Note: Rear Coil Without Autoride Suspension
