FOX 2.5 Performance Series Front Shock – Fits 2020-26 Chevrolet Silverado/GMC Sierra 2500/3500, 1.5-2.5" Lift

Straight answers

• Fits: 2020-26 Chevrolet Silverado/GMC Sierra 2500/3500 (Sierra 2500 HD, Sierra 3500 HD, Silverado 2500 HD, Silverado 3500 HD). Check the fitment notes before you order.
• Drivetrain: 4WD, RWD and AWD.
• Position: Front.
• Lift height: 1.5-2.5"
• Body Diameter: 2.5 in.
• Shock Type: Smooth Body.
• Extended Length: 18.95 in.
• Compressed Length: 13.76 in.
• Travel Length: 5.18 in.
• Top Mount Type: Bar Pin.
• Bottom Mount Type: Clevis.

Not sure it fits your truck? Call (806) 621-1226 before you order and we'll check the fit for your year, make, model and drivetrain.

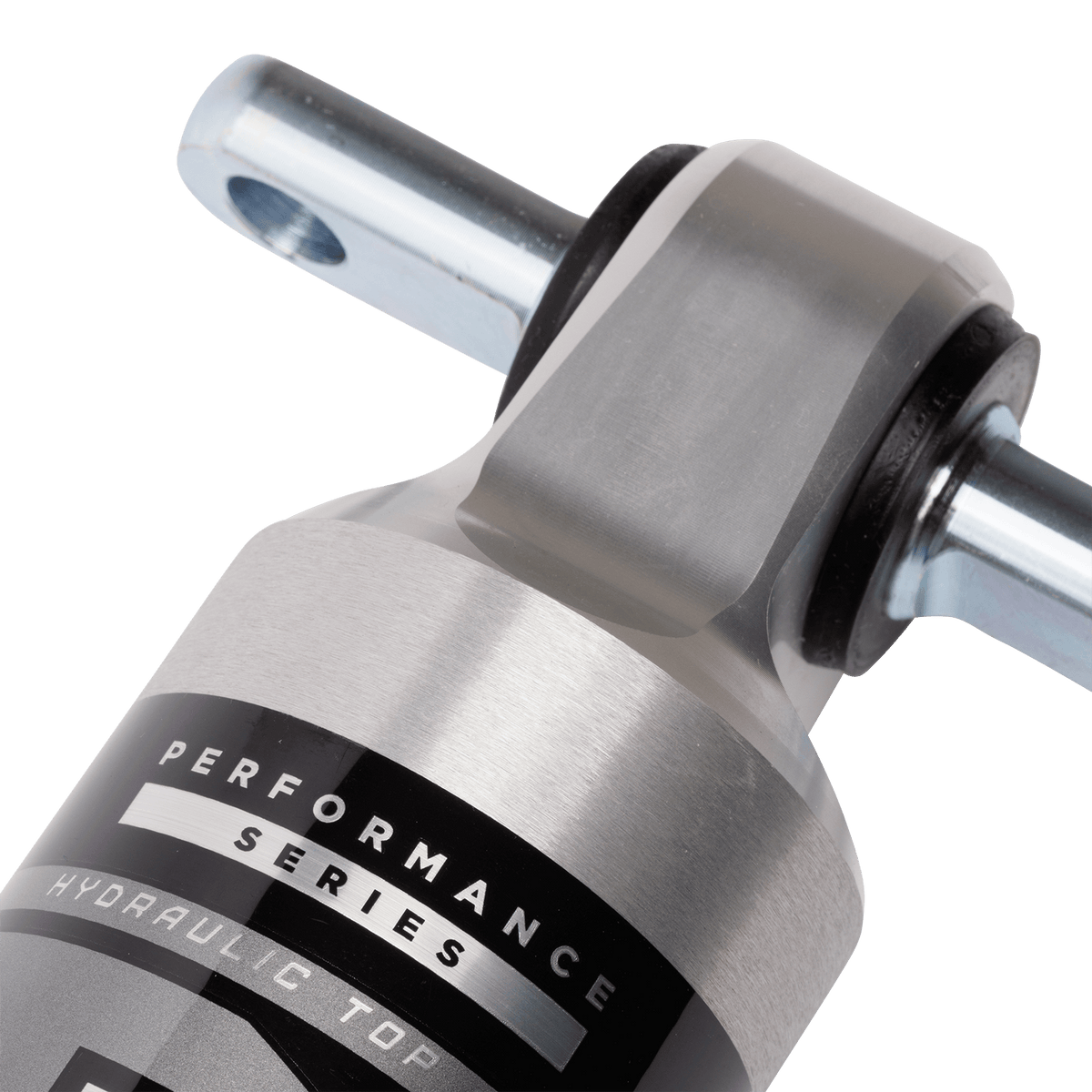

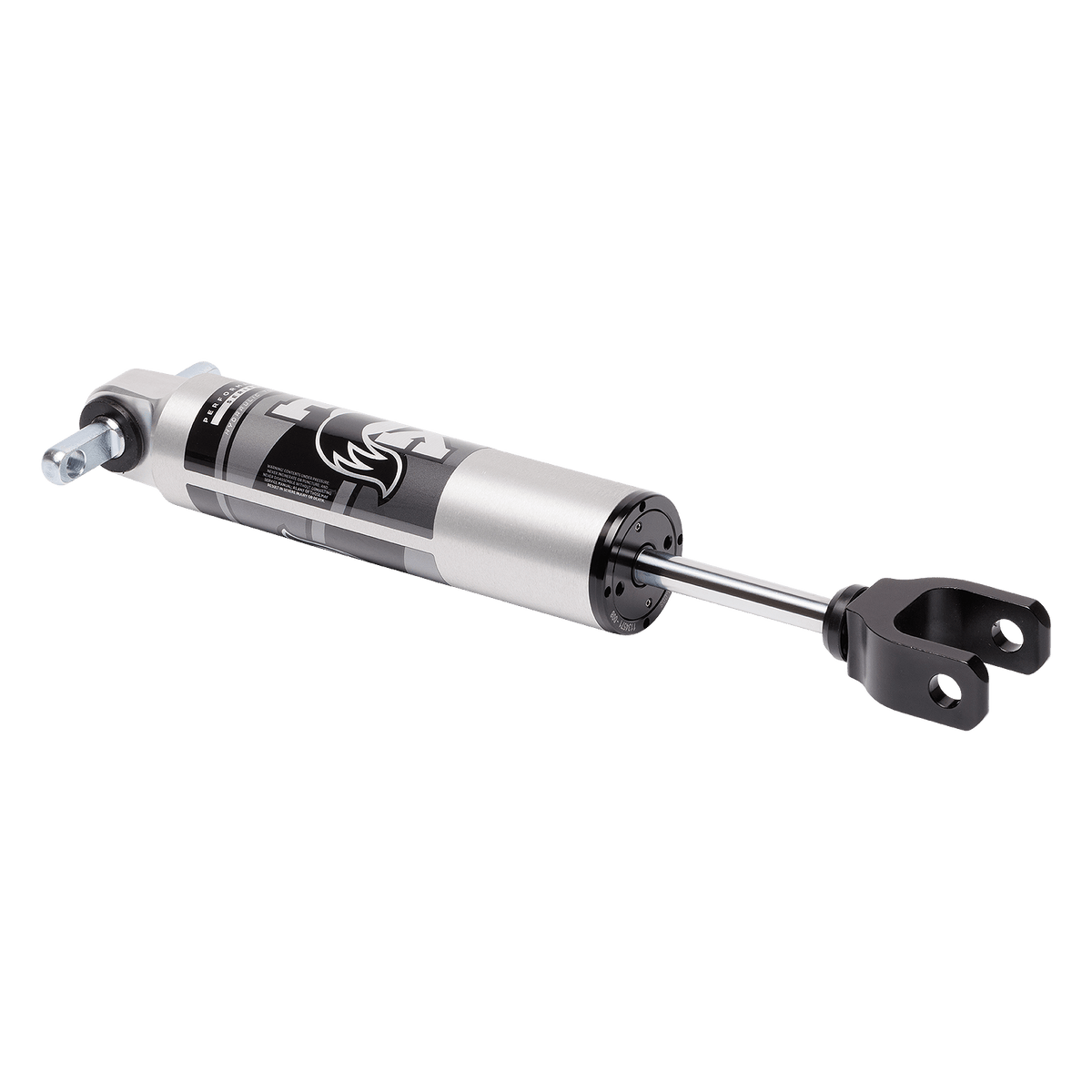

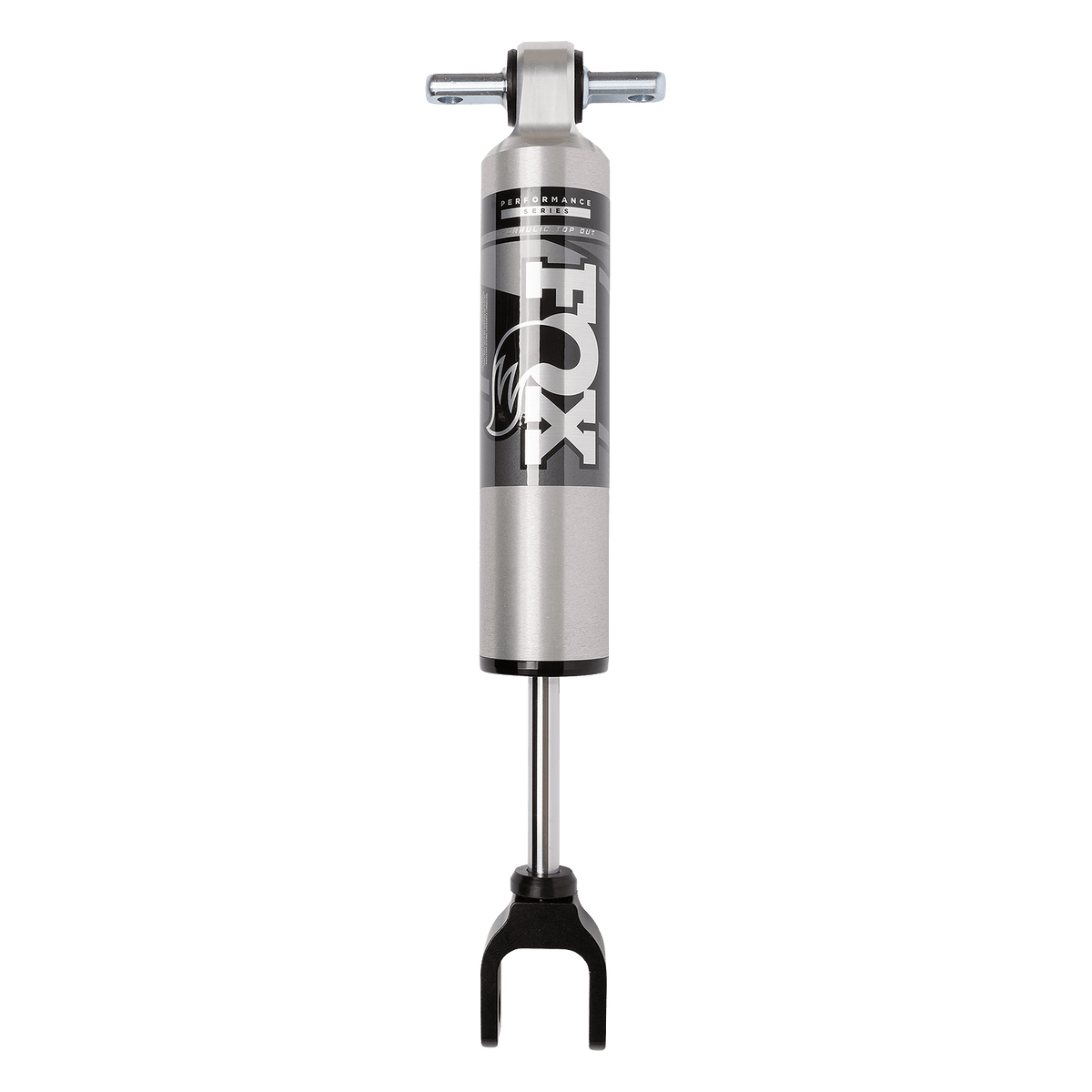

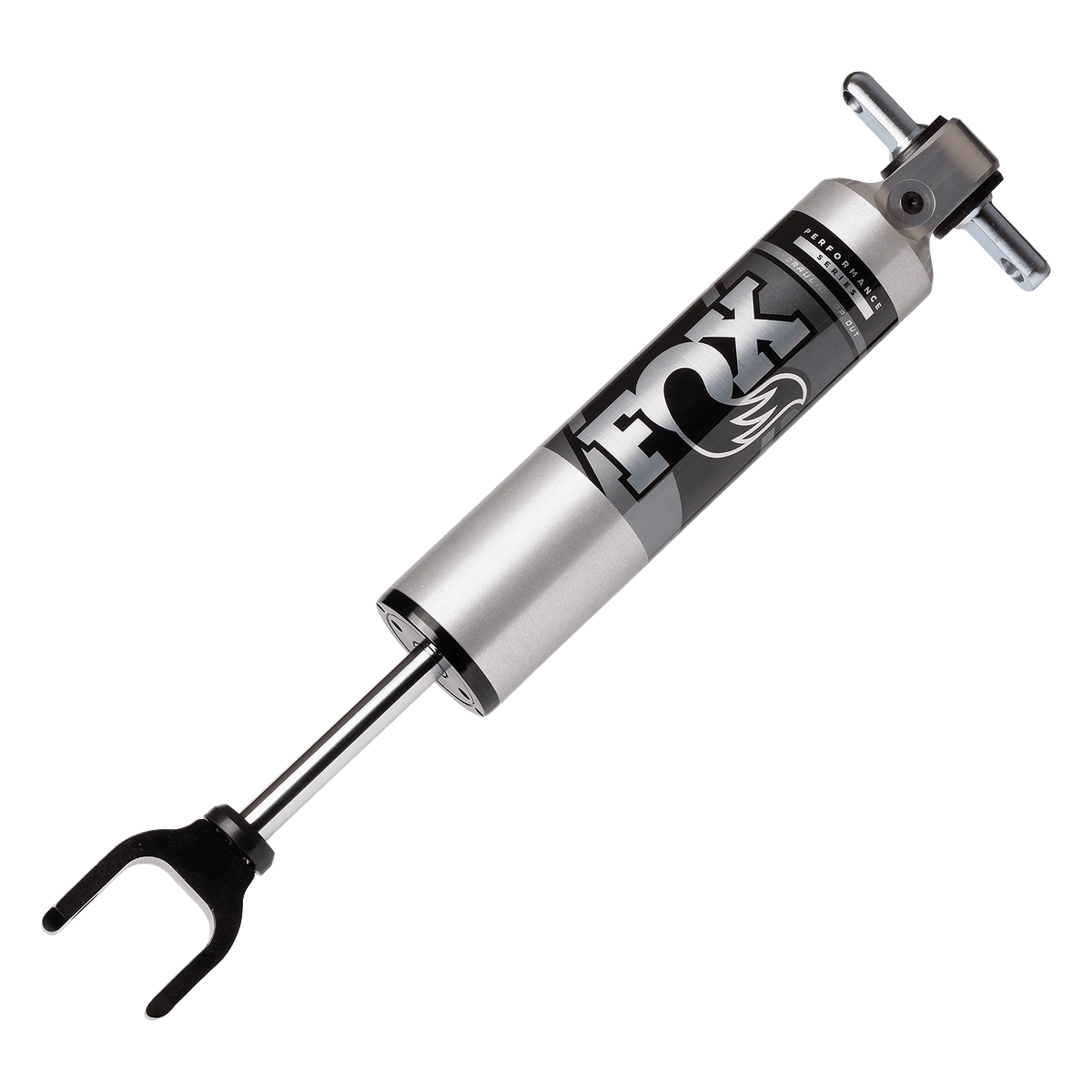

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Specifications

• Brand: FOX
• Part Number: 987-24-010
• Series: Performance
