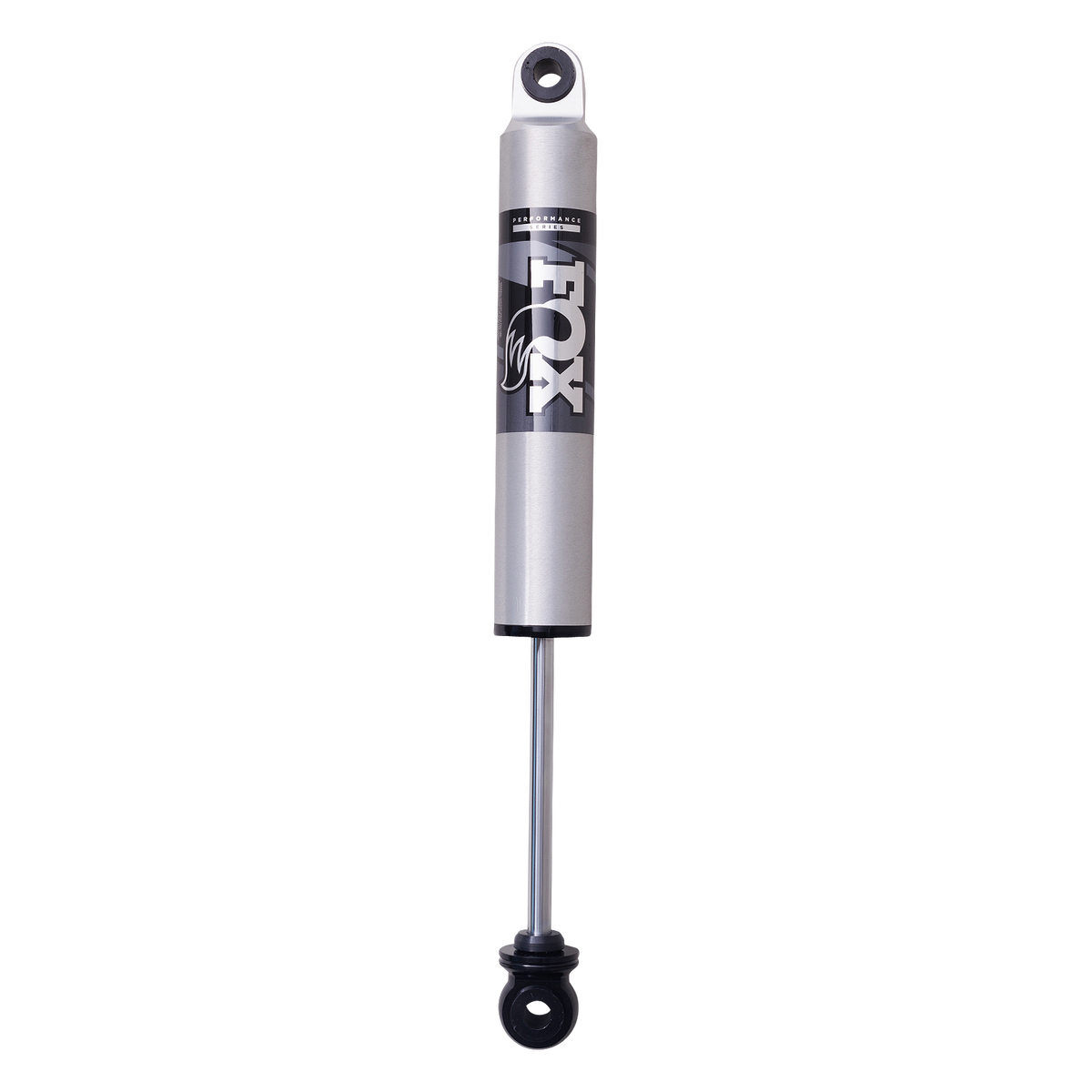

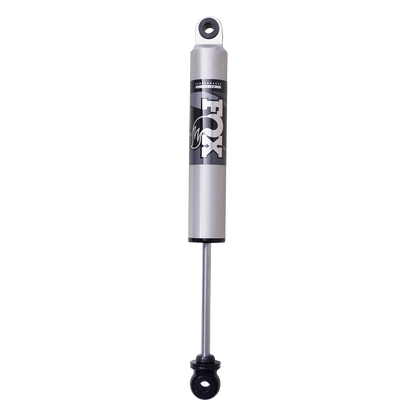

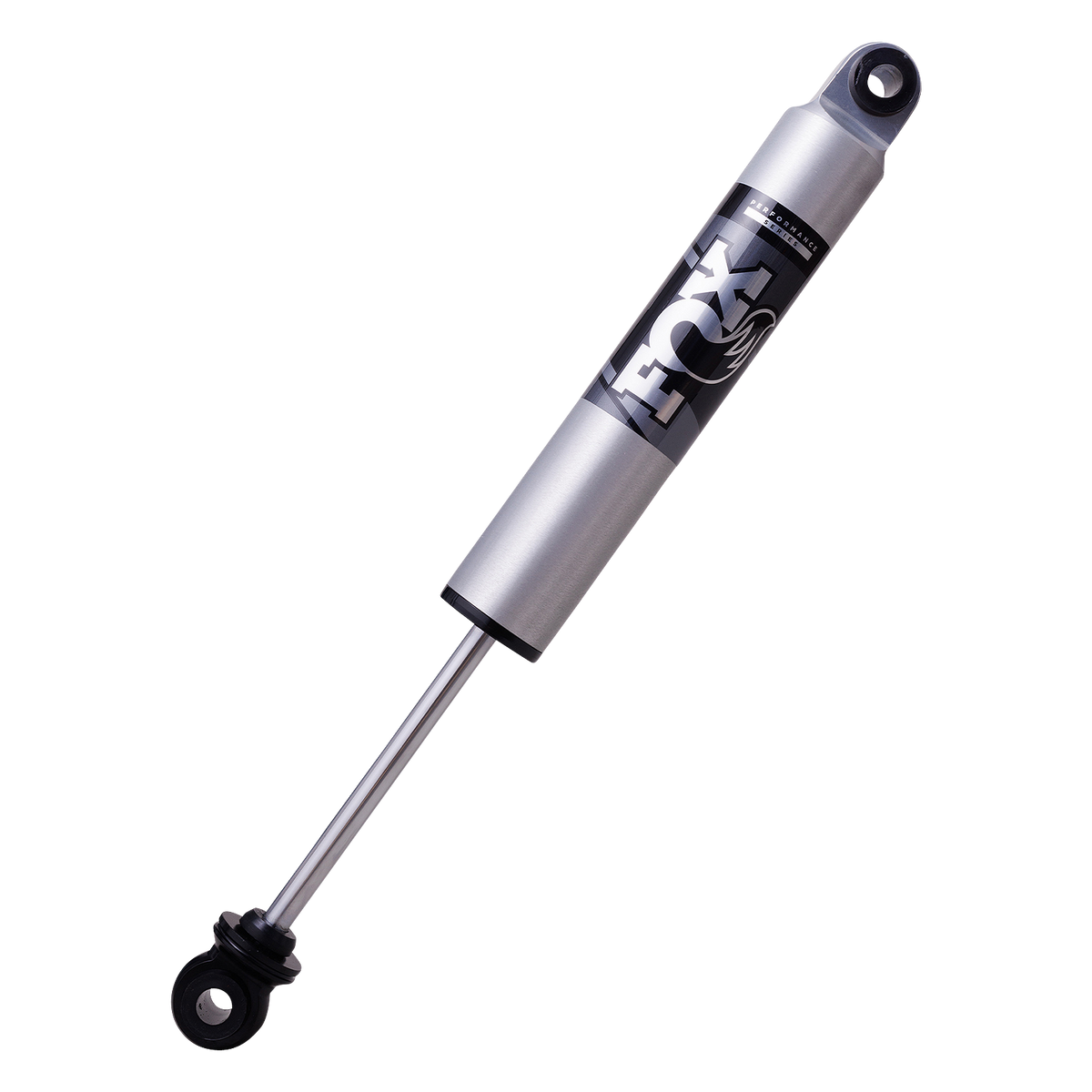

FOX 2.5 Performance Series Rear Shock – Fits 2014-27 Ram 3500, 0-1.5" Lift

Straight answers

• Fits: 2014-27 Ram 3500. Check the fitment notes before you order.
• Drivetrain: 4WD, RWD and AWD.
• Position: Rear.
• Lift height: 0-1.5"
• Body Diameter: 2.5 in.
• Shock Type: Smooth Body.
• Extended Length: 26.48 in.
• Compressed Length: 17.39 in.
• Travel Length: 9.09 in.
• Top Mount Type: Eyelet.
• Bottom Mount Type: Eyelet.
• Fitment notes: Fits Single and Dual Rear Wheels; Compatible with Air Suspension Equipped Trucks.

Not sure it fits your truck? Call (806) 621-1226 before you order and we'll check the fit for your year, make, model and drivetrain.

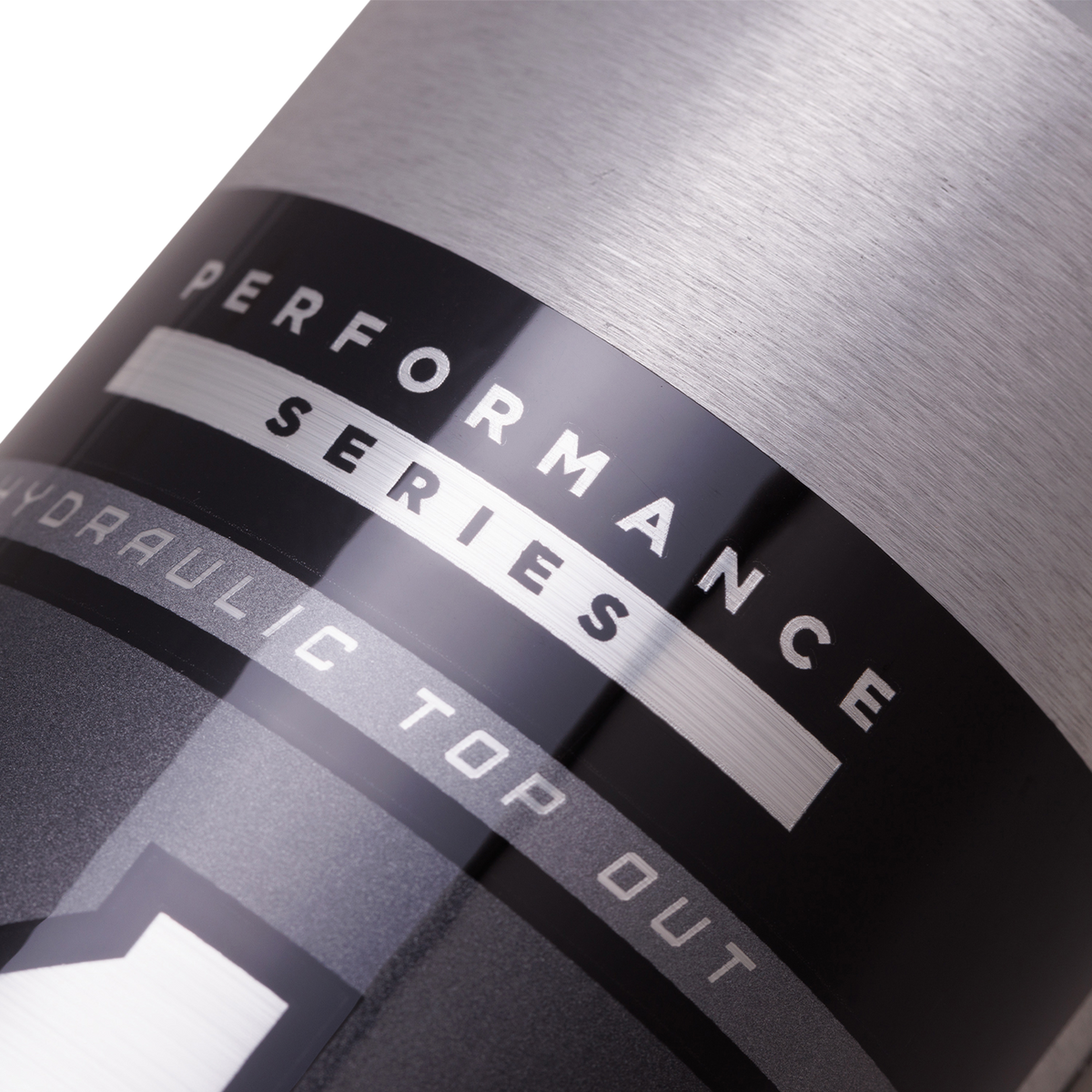

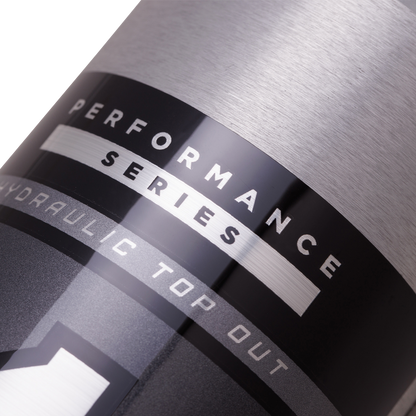

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Specifications

• Brand: FOX
• Part Number: 987-24-027
• Series: Performance
